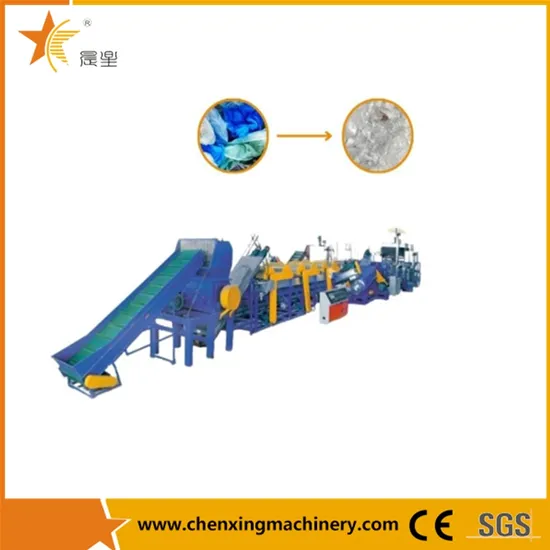

Waste Plastic PP PE Film Washing Line Recycling Machine Unit

Product Description

Waste Plastic PP PE Film Washing Line Recycling Machine Unit
Product Description
The Plastic Film Agglomerator densifier is used to granulate the thermal plastic films, PET fibers, whose thickness is less than 2 mm into small granules & pellets directly. The soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics are suitable for it.
Features and application
Features of Plastic Agglomerator Densifier:
1.Working Principle of Plastic Agglomerator/ plastic densifier machine
2. When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization.
3. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing. Technical parameters

Item	Technical data
	GHX-150	GHX-200	GHX-300	GHX-500	GHX-600	GHX-800
Volume (L)	150	200	300	500	600	800
Effective volume (L)	100	150	225	375	450	600
Main shaft speed(r/min)	1050	1000	950	750	750	750
Output (kg/h)	100	150	200	300	400	550
Motor (kw)	37	45	55 (75)	90	110	110 (132)
Weight (kg)	1000	1200	1800	2500	2700	3000
Dimension (m)	1.7*0.75*1.5	1.7*0.85*1.5	2*0.85*1.6	2.3*0.95*1.7	2.3*1.1*1.75	2.5*1.25*1.8
Rotate blade quantity	2	2	2	4	4	4
Fixed blade quantity	6	6	8	8	8	8
Pot material	Stainless steel
Blade material	9CrSi
Discharge method	Automatic / Manual

Remarks: all information above is only for refererence; please gather the exact data by contacting us.
Picture For Reference
1.Machine Display:
2.Product Display:
3.Other related production:
4.Factory Display:
Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.


FAQ
Our service:
1.Ability to provide the customized plastic extrusion solutions;
2.Complete sales system covering the pre-sales, sales and after service jobs;
3.Commissioning & installation service in customer plant
4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running.
5.We can design the machines according your requirements(materil,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
FAQ:
Q. After-sales service
A: Send engineers to install, test the machines and offer technology guidance and worker training at customers' factory.
Q: Your company is a trading company or an industrial manufacture factory?
A: Our company is an integrated industrial and trade company.
A:Do you have a price list?
B:We are a professional plastic machine manufacturer. We have different models, even for the same material type of machines, it is recommended to ask for price/quotation according to actual needs (e.g. Ability or your rough budget).
A:Can I have a custom design?
B:We design and build each project according to the needs of our customers.
Customization is based on requirements (e.g., 480V60Hz in the US, 440V/220V60Hz in Mexico, 380V60Hz in Saudi Arabia, 415V50Hz in Nigeria).
Q:what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Q:If we buy your machines, can you offer us series?
A:Yes,We provide our high quality machine 1 years' guarantee,Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Questions for Buyers
Pls think about the following questions and then send your messeage. And we will offer you our quotation ASAP.
1. Is the film clean?
2. Do you have the requirement to the capacity?(How many kgs you want per hour?)
3.The voltage?(380V,50HZ,3 phrase or customized)
CONTACT US:If you need to know more information about our company or our product , welcome to contact us and visit our factory!
Our company hope to cooperate with you to create a better future! ! !
