2000kg Stationary Electric Single Scissor Lift Table with 850X1300mm Platform Size Hl-W2001

2000kg Stationary Electric Single Scissor Lift Table with 850X1300mm Platform Size Hl-W2001

US$860.00-2,100.00 1 Piece (MOQ)

Basic Info.

Model NO.
HL-W2001
Carrying Capacity
Middle-Level
Moves
Stationary
Driven Type
AC
Running Mode
Stationary
Certification
GS, CE, ISO 9001
Design
Heavy Duty Type
Capacity
2000kg
Min Height
230 mm
Raised Height
1000 mm
Platform Size
8540X1300mm
Power Pack
380V/50Hz,AC Vesrion
Transport Package
Wooden Pallet
Specification
1000kg
Trademark
Leeda
Origin
China
HS Code
8427900

Product Description

Stationary Lift Table (HL-W SERIES)
Heavy Duty Design
HL-W series Lift tables meet EN norm and ANSI/ASME safety standards.
These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tention (24V) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the Lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
Self lubricating bushings on pivot points.

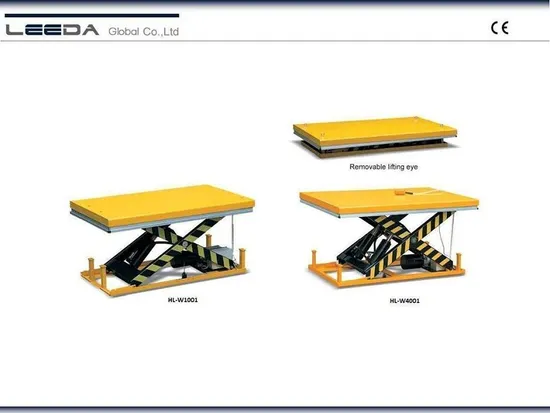

Removable lifting eye to facilitable handling and Lift table installation. Bitmap
High quality AC power packs are made in Europe
Model Capacity Lowered Height Raised Height Platform Size Base Frame Size Lift Time Power Pack Net Weight
(kg) (mm) (mm) (mm) (mm) (second) (kg)
HL-W1001 1000 205 990 820× 1300 640× 1240 20-25 380V/50HZ, AC 1.1kw 160
HL-W1002 1000 205 990 1000× 1600 640× 1240 20-25 186
HL-W1003 1000 240 1300 850× 1700 640× 1580 30-35 200
HL-W1004 1000 240 1300 1000× 1700 640× 1580 30-35 210
HL-W1005 1000 240 1300 850× 2000 640× 1580 30-35 212
HL-W1006 1000 240 1300 1000× 2000 640× 1580 30-35 223
HL-W1007 1000 240 1300 1700× 1500 1580× 1320 30-40 380V/50HZ, AC 1.1kw 365
HL-W1008 1000 240 1300 2000× 1700 1580× 1320 30-40 430
HL-W2001 2000 230 1000 850× 1300 785× 1220 20-25 380V/50HZ, AC 2.2kw 235
HL-W2002 2000 230 1000 1000× 1600 785× 1220 20-25 268
HL-W2003 2000 250 1300 850× 1700 785× 1600 25-35 289
HL-W2004 2000 250 1300 1000× 1700 785× 1600 25-35 300
HL-W2005 2000 250 1300 850× 2000 785× 1600 25-35 300
HL-W2006 2000 250 1300 1000× 2000 785× 1600 25-35 380V/50HZ, AC 1.5kw 315
HL-W2007 2000 250 1400 1700× 1500 1600× 1435 25-35 380V/50HZ, AC 2.2kw 415
HL-W2008 2000 250 1400 2000× 1800 1600× 1435 25-35 500
HL-W4001 4000 240 1050 1200× 1700 900× 1600 30-40 375
HL-W4002 4000 240 1050 1200× 2000 900× 1600 30-40 405
HL-W4003 4000 300 1400 1000× 2000 900× 2000 45-50 470
HL-W4004 4000 300 1400 1200× 2000 900× 2000 45-50 490
HL-W4005 4000 300 1400 1000× 2200 900× 2000 45-50 480
HL-W4006 4000 300 1400 1200× 2200 900× 2000 45-50 380V/50HZ, AC 2.2kw 505
HL-W4007 4000 350 1300 1700× 1500 1620× 1400 35-45 380V/50HZ, AC 2.2kw 570
HL-W4008 4000 350 1300 2200× 1800 1620× 1400 35-45 655
