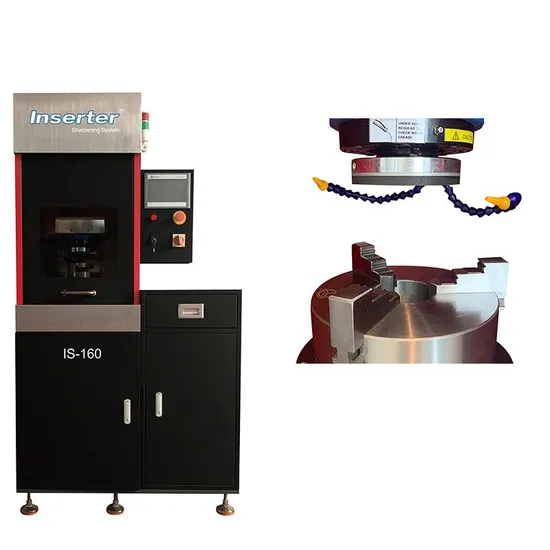

with Data Tracking Function CBN Grinding Wheel Punch Press Tooling Systems
| US$9,500.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
IS-160
Type
Tool Grinding Machine
Processing Object
Mould
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Punch Press Tool Grinding Machine
Power of Main Motor
2.2kw
Servo Motor
0.75kw
Cooling Motor
0.045kw
Maximum Grinding Diameter
200mm
Maximum Grinding Stroke
200mm
Transport Package
Export Wooden Box
Specification
820X1020X1850mm
Trademark
RSM
Origin
China
Production Capacity
10-20sets/Month
Product Description
Main Feature:01. Automatic sharpening(Automatic tool setting, automatic removal).
02. PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.
03. Grinding accuracy: flatness±0.01MM.
04. The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening.
05. Automatic lubrication system.
06. Automatic cooling system(Prevent tool grinding and annealing).
07. Automatic liquid level detection system(Automatically alarm and stop when the coolant is lacking to prevent tool grinding and annealing).
08. Automatic filtration system(Filter cotton can be washed and reused).
09. Safety door protection and alarm function.
10. Grinding overload protection system.
11. Spindle upper limit alarm function.
12. Emergency stop alarm function.
13. Interrupt return function.
14. Exhause system helps trap remaining swarf.
Parameter:
| Name | IS-160 |
| Power of Main Motor | 2.2KW, 2840 RPM |
| Motor of Rotating Table | 0.100KW, 1440 RPM |
| Servo Motor | 0.75KW |
| Cooling Motor | 0.045KW |
| Maximum Grinding Diameter | 160mm |
| Maximum Grinding Stroke | 200mm |
| The Diameter of Grinding Wheel | 135mm |
| Minimum step | 0.01mm |
| Measurement of machine(L x W x H) | 820X1020X1850mm |
| Weight of Machine | 650KG |
FAQ
1.How many models of grinding machine are there?
A: We have 3 models. RG-160;WG-150;IS-160
2.Which brands of molds are suitable for?
A: Suitable for Amada,Murata and Trumph.
3.How can I choose the right fixture?
A: As each brand has different mold sizes, you can contact us.
