2024 Hot Sale Self Loading Mixer Machine Trailer Truck Self Load Concrete Mixer Hy400 Self Loading Cement Concrete Mixer Truck

Product Description

Product Description

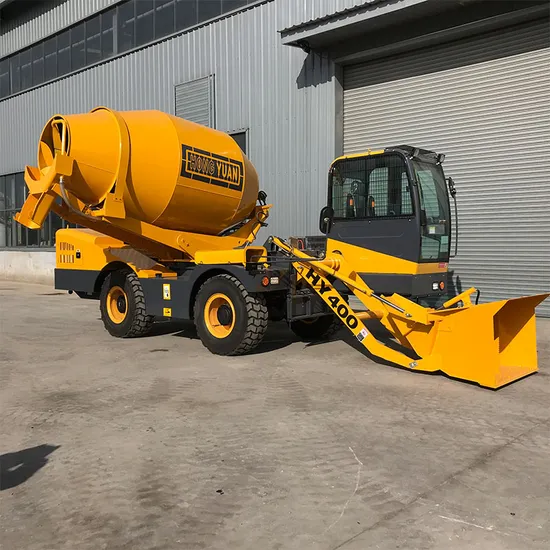

Hongyuan 270 Degree Rotating Self loading Mobile Concrete Mixer
1.Advantages Of Our Concrete Mixer 1). Original Price: FOB, CNF/CFR, CIF
2). Certificates: CE, ISO
3). Promptly Delivery:15-20 days
4).Excellent After-sale Service and Customization Service.
5).High Efficiency
*Capacity: 14 cubic meters(18.31 cubic yards)/hour;
110 cubic meters (143.87 cubic yards)/day;
33000 cubic meters(43,162.44 cubic yards)/year
*Labor-saving
*4 wheel drive, 2 wheels steering
*Accurate Electric Weighing System
*The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle
*Combined the fountions of Loading, Weighing, Pumping, Mixing, Delivering and Discharging
2.Product Description
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with
a powerful engine and 2 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material. The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete
mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

3.Main Features
1) The self mixing concrete truck can automatic feeding, measuring, mixing and discharging
concrete.
2) The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3) It has independent water supply system, which can ensure the high quality of concrete.
4) It just need one operator to drive, load, and mix raw material while moving it.

Mixing drum	Capacity : 4.0M3, 14m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 270 degree.
Engine parameters	Yuchai YCD4P22T-130 , rated power/turns: 95kw (129HP)/ 2400rpm.
Drive system	Hydraulic component( variable stroke pump) : Eaton two grades gear transmission : road/off road, 4 wheel drive
Speed	Low gear speed: 0-9.5km/h, high gear speed : 0-28km/h
Cabin	Front cabin with rops &fops design, Double backward camera, sunshade curtain, Air conditioning
Hydraulic system	variable stroke pumps provide power separately to car drive and mixer. 2 constant rate pumps provide power to drum slewing , brake, water. cooling: water/air
Joystick	All working operation designed in one joystick
Bucket	Capacity: 0.6m3 hydraulic controlled door
Chute	Adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement
Water system	Water pump with high pressure washing gun
Climbing angle	degree with full load
Brake	Wet brake, parking brake with gear box
Tires	Off-road engineering tire 16/70-20 PR16
Steering	Back axle steering, all hydraulic inner steering radius: 1988mm/4130mm outer steering radius:3767 mm/6030mm
Electric system	Battery :2X12V 120Ah, provide lighting and ignition
Fuel tank	110L
Hydraulic oil tank	80L
Carframe	All steel welding
Weight	Off load:8t, full load :18t
Weighing system	Equipped with high precision concrete weighing system & micro printer for detailed data of weight price, date etc.
Dimensions(LxWxH)	7500*2700*3380mm

FAQ

1. who are we?
We are based in Shandong, China, start from 2005,sell to Northern Europe(30.00%),Eastern Europe(28.00%),Western Europe(24.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South Asia(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Mid East(2.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us?
Wheel Loader, Self Loading Concrete Mixer, Telescopic Loader,Telehandler, Sugarcane Loader,Site Dumper, Backhoe Loader, Tracked Carrier, All-terrain off-road Forklift, Motor Grader. 4. why should you buy from us not from other suppliers?
We have more than 19 year's producing and exporting experiences of construction machinery and agricultural machinery. All the machine were produced by ourselves and we have very much learned about the strengths and weaknesses of these machines. 5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,EUR; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese
