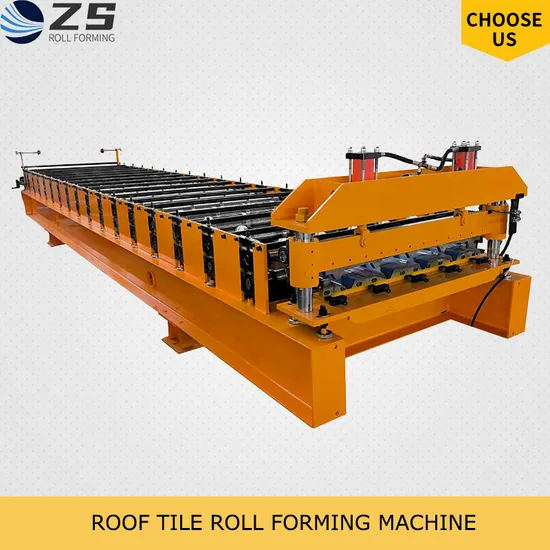

Advanced Metal Roofing Roof Tile Roll Forming Machine for Wall Cladding Panels

Product Description

Product Description
Expert Supplier of Roof Panel Roll Forming MachinesRoof Panel Metal Roofing Sheet Making Machine - IBR Sheets Rolling Machine
Our state-of-the-art machine is meticulously engineered for producing premium steel roof sheets. It delivers three stunning styles: corrugated sheets, trapezoidal sheets, and glazed tiles. These steel roof and wall sheets are the top choice for an array of applications including vast factory buildings, warehouses, modern office buildings, luxurious villas, rooftops, cold storage facilities, sterile air purification rooms, retail outlets, kiosks, and versatile temporary housing solutions.
Outstanding Advantages of Our Machine:
1. Execute production orders with unparalleled efficiency and precision.;
2. Exceptional equipment reliability ensures consistent performance.
3. Significantly reduced waste of materials and energy, promoting sustainability.
4. Remarkable productivity for large-scale operations.
5. Utilization of top-tier materials guarantees an extended service life.
6. All components are expertly crafted with precision. The roll surface is chrome-plated, ensuring flawless products free from scratches on the color steel surface paint, thereby prolonging the roll's lifespan.
7. Customized coil processing solutions adeptly address all technical challenges.
Product Parameters

o.	Item		Unit	Parameter	Remark
1	Material
		Type		PPGI, PPGL, GI, GL, PPAL	As requirement
		Thickness of Material	mm	0.3-0.8mm	As requirement
2	Material Width		mm	914-1650	As requirement
3	Production Speed		m/min	Common speed: 0-5m/min	Adjustment
				High speed: 30-60m/min	As requirement
4	Effective Width of Product		mm	760-1260mm	According to drawings
5	Roller Material			45#, Cr12, GCr15, GCr12MoV	As design
6	Drive Type			By Chain or Gear or Gearbox
7	Motor Power		kW	5.5-15kW	As design
8	Brand of Electric Control System			Delta or Siemens	Selectable
9	Dimension ( L* W * H )		m	10.5*1.45*1.5m	Based on design
10	Warranty		Month	15

Working Flow
Decoiler---Roll Forming Machine---Hydraulic System---Automatic Control System---Automatic Cutting System---Receive Table Experience unparalleled efficiency with our streamlined process. From the initial Decoiler to the advanced Roll Forming Machine, every step is meticulously engineered. Our robust Hydraulic System ensures precision, while the state-of-the-art Automatic Control System provides seamless operation. The Automatic Cutting System delivers immaculate cuts, and the Receive Table ensures orderly collection of the finished product.
Detailed Photos
Discover the latest innovation in our feeder system design, crafted to perfection.
Enjoy stable operation with our system that ensures no coil swinging.
Benefit from easy adjustment features, making it user-friendly.
Working width: Accommodates up to 1250mm for versatile applications.
Electric pre-cutting capability efficiently saves coil material upon order completion via PLC.
Driving Type: Choose from Chain (common), Gear, or Gearbox options.
Forming Model: Available in Integral Forming or Split Forming.
Forming Machine Structure: Select from Medium-plate Type (common), Arch Type, or Guide-pillar Type.
Roller Material: Options include 45#, Cr12, GCr15, or GCr12MoV for durability.
Shaft Material: Crafted from 45# or 40Cr; Available in 70mm/80mm/90mm (common) or custom sizes.
Motor Power: Options range from 4.0kW to 5.5kW, adaptable to design requirements.
Main Frame: Constructed from 350# or 400# H-beam steel for robust support.
CNC-processed rollers ensure high precision, delivering perfectly formed products.
Working Model: Choose between Hydraulic Cutter (common) or Electric Cutter.
Cutter Blade Material: Crafted from Cr12 for superior cutting performance.
PLC Brand: Delta, ensuring reliable and efficient control.
Touch Screen: Delta, offering intuitive and responsive interaction.
Enjoy user-friendly operation with our advanced systems.
Order Number: 20
Hydraulic oil pump features a fan cooling system for extended performance.
Power: 4kW, delivering robust performance.
Equipped with a high-quality Gear Pump.
Includes a 5T Manual Decoiler, ensuring seamless operation within this production line.
An automatic decoiler option is available for added convenience.
Upgrade to a 7T Hydraulic Decoiler for enhanced efficiency.
Effortless automatic coil operation for streamlined production.
Power: 4kW, ensuring consistent and reliable performance.
Driven by an efficient hydraulic oil pump for optimal functionality.
PLC Control System: Advanced technology for seamless automation.
Automatically controls quantity and cutting length for precision.
Input production data (batch, pcs, length, etc.) on the touch screen to automate the entire production process.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)
Inverter	Siemens (German brand)
7-Inch Color Touch Screen	Siemens (German brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. Warranty Period:18months from the receipt of the machine.
During the first 24 months, replacement parts will be couriered free of charge.
2. Lifetime technical support for all of our machines.
3. On-site installation and worker training available at an additional cost.
Terms Of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
