10~24m Articulated Cherry Picker Spider Lift Towable Boom Lift
| US$5,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TBL
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Hydraulic
Carrying Capacity
200 Kg
Moves
Towable
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Lift Drive
AC/DC/Hydraulic Diesel Ect
Turning Degree
360degree
Loading Capacity
Customization
Surface Treatment
Plastic Spraying
Color
Red Yellow Blue Customized
Quality Assured
CE ISO9001 Saco FTA SGS Iam Ect
Input Voltage
110V 220V 240V 380V, 400V, Customized
Safety Precaution 1
Aluminum Safety Sensor
Safety Precaution 2
Anti Explosion Valve
Safety Precaution 3
Anti Explosion Valve
Transport Package
Full Container
Specification
5500*2200*2200
Trademark
PLK LIFT
Origin
China
HS Code
8428909090
Production Capacity
500 Per Month
Product Description

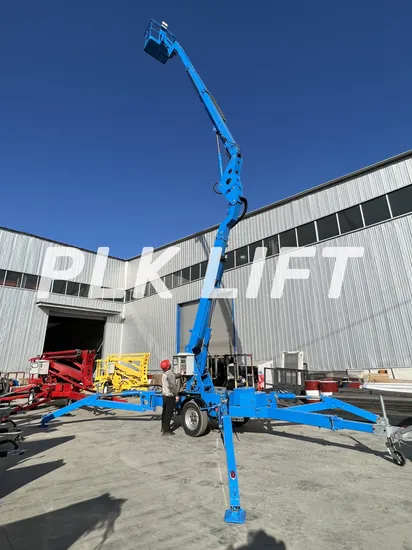

10-16m Trailer Telescopic Articulated Cherry Picker Spider Lift Towable Boom LiftTowable boom lift platform height from 10m to 16m (working height from 12m to 18m). Load capacity 200kg. It can be towed easily from site to site and work for you quickly. It is widely used for aerial working, such as road lamp repair, palm tree trimming work and cleaning the window etc.
Power options available on PLK towable boom lift include AC (connect with electricity), DC (battery power), gasoline, diesel and 'Dual-Energy' ( for example battery & diesel or battery & gasoline), combining the benefits of two power sources on the same machine. Towable Cherry Picker is popular for its easily moving and operation. Having it will be your wisest choice.
| Model | TBL-10A | TBL-12A | TBL-14A | TBL-16A | TBL-18A | TBL-20A | ||
| +Telescopic | +Telescopic | +Telescopic | +Telescopic | |||||
| Lifting height | 10M | 12M | 14M | 16M | 18M | 20M | ||
| Working height | 12M | 14M | 16M | 18M | 20M | 22M | ||
| Load capacity | 200KG | |||||||
| Platform size | 0.9*0.7M | |||||||
| Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M | ||
| Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 2800KG | 3500KG | ||
| Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M | ||
| Supporting Legs Stride Distance(Horizontal) | 3.0 M | 3.6 M | 3.6 M | 3.9 M | 3.9 M | 3.9 M | ||
| Supporting Legs Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M | 4.9 M | 4.9 M | ||
| Wind Resistance Level | <=5 | |||||||
| 20'/40' Container Loading Quantity | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set | ||
| 40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | |||
