75kw Bx1150 Disc Wood Chipper Capacity 12-15 M³ /H

Product Description

BX1150 Disc Wood Chipper
Technical Parameters:

Model	BX1150
Knife disc diameter (mm)	1150
Feed open size (mm)	270 x 270
Knife disc rotary speed (rpm)	650
Knife Qty. (pcs)	6
Capacity (m³/h)	12 - 15
Main motor power (kw)	75
Wood chips size (mm)	20 - 35
Type of feeding	Incline or horizontal
Type of outlet	Blow out or by belt

Disc chipper is a kind of special wood chipper. It is widely used to make high quality wood chips for Paper pulp industry, Fiberboard (MDF HDF) , Particleboard, Chipboard and so on.
Working Principle:
Disc wood chipper consists of knife disc, body frame, electric motor or diesel engine, control cabinet, etc.
There are knives fixed on the knife disc. The knife disc are drove to rotate on high speed.
The wood logs will meet the rotating knives when they are feed into the chipper and then they become perfect wood chips of uniform size.
*** To produce good wood chips, the knives are fixed on the disc by special and strict angle and distance.
Application Area: Paper pulp plant Fiberboard (MDF HDF) factory Particleboard factory Chipboard factory Wood chips mill Bamboo chips plant
Raw Material To Process:
Disc wood chipper mostly work with wood logs and tree branches. It can also process bamboo and other long wood materials. However, disc wood chipper can't work well when small or very short materials are feed in.
Disc Wood Chipper Infeed System:
For different use, the disc chipper can be equipped with three types of infeed system. Incline manually infeed Belt infeed conveyor Chains infeed conveyor

Disc Wood Chipper Outlet System:
Several types of outlet system to meet different running condition of disc wood chipper. For light duty disc chipper, the wood chips always blow out from machine. For heavy duty disc chipper, belt outlet conveyor is best choice. Wood chips blow outlet Belt outlet conveyor Two step belt outlet conveyor
Knife Disc:
Knife disc is the major important parts of the disc chipper. It consists of disc, knives, knife clamp and shaft. Knife quantity is range from 3 pcs to 10 pcs for different model. With professional designation and strictly machining on the knife disc, the chipper will output good wood chips of perfect shape and uniform size.
Wood Chips Size:
The wood chips made by disc wood chipper is not on fixed size. Chips size could be adjusted as different use.
For example, the chips for paper pulp is normally designed to be 20-35mm. For some special use, the chips could be designed to smaller or bigger.
Control System:
All the running section of the wood chipper is controlled by one control panel.
The control panel is equipped with infeed, outlet, emergency stop control buttons, etc. All the control panel have motor protection function.
For security, there is remote controlling solution for choice. It is a effective solution to protect the wood chipper operators.
Disc Wood Chipper Global Cases:
After 30 years of unremitting efforts and development, we have delivered more than 30,000 sets of machines to all over the world.
We have kind customers from more than 100 countries in Aisa, Europe, Africa, Latin America, etc.
Standard Models of Disc Wood Chipper:

Model	BX600	BX800	BX950	BX1150	BX1300	BX1600	BX1800	BX2000	BX2250
Knife disc diameter (mm)	600	800	950	1150	1300	1600	1800	2000	2250
Feed open size (mm)	150x150	180x180	220x220	270x270	350x350	420x420	500x500	580x580	650x650
Knife disc rotary speed(rpm)	950	900	850	650	650	620	600	500	500
Knife Qty (pcs)	3	4	6	6	6	6	8	8	10
Capacity (m³/h)	3 - 4	5 - 8	8 - 12	12 - 15	18 - 25	30 - 50	60 - 90	90 - 110	120-160
Motor power(kw)	22	45	55	75	110	160	220	315	500
Chips size (mm)	15-35	15-35	20-35	20-35	20-35	20-35	20-35	20-35	20-35
Type of feeding	Incline	Incline	Incline	Incline or Horizontal	Incline or Horizontal	Incline or Horizontal	Incline or Horizontal	Incline or Horizontal	Incline or Horizontal
Type of outlet	Blow out	Blow out or by belt	Blow out or by belt	Blow out or by belt	Blow out or by belt	Blow out or by belt	Blow out or by belt	Blow out or by belt	Blow out or by belt

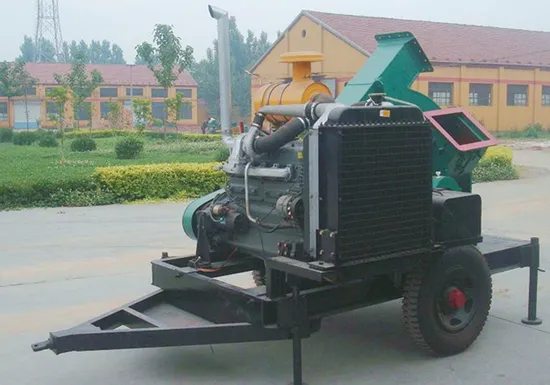

*** Mobile type and diesel engine power are optional for all the above models.
