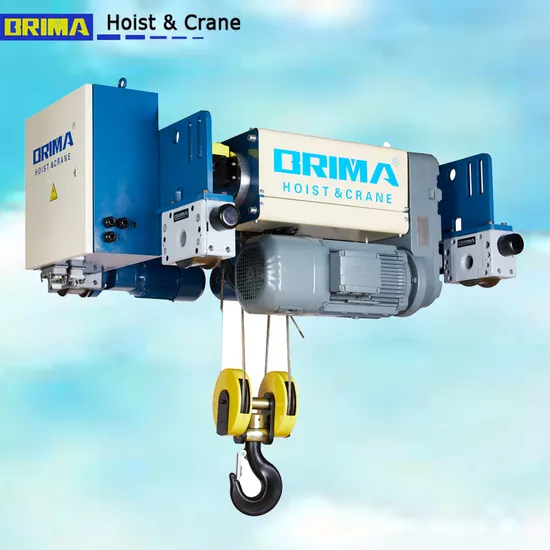

16ton Double Girder European Electric Wire Rope Hoist
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
BMG-16.0D
Sling Type
Wire Rope
Lift Speed
2~8m/min
Maximum Lifting Height
>20m
Chain Falls
4/1
Certification
CE, ISO9001:2000
Condition
New
Color
Any Color
Lifting Speed
4/0.6m/Min
Lifting Power
16/2.6kw
Traveling Speed
5/20m/Min
Traveling Power
0.55*2kw
Transport Package
Plywood Cases
Specification
CE; SGS; ISO
Trademark
BRIMA
Origin
Kunshan
HS Code
8425110000
Production Capacity
5000 Sets/Year
Product Description
16ton double girder european electric wire rope hoistBrima specialize in manufacturing BMG electric chain hoist, Europe type wire rope hoist, BM electric chain hoist, Crane geared motor, End carriage ,Manual chain hoist
Brima brand products include:
* BMG electric chain hoist from 125kg to 1ton
* Europe type wire rope hoist from 3.2ton to 80 ton
* BM electric chain hoist from 250 kg to 50ton
* Crane geared motor
* End carriage
* Manual chain hoist
Advantages:
1. Low headroom design, compact, strong, long service life span, save your space.
2. Three-in-one lifting motor: AMB Germany original imported. Column rotor, low noise.
3. Limit Switch: Cam limit model operate safety.
4. With load limiter protection.
5. Remote control avaliable.
New advantages:
1. Improved travelling motor: Lower noise, more effciency
2. Improved wire rope guider: Improved to engineering plastic material, lighter, less wear to wire rope
Capacity (kg) | Lifting height (m) | Model | m/min | KW | (m/min) | KW | FEM/ISO | FEM/ISO | H (mm) | C (mm) | B(mm) | ||
| 2000 | 6 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 |
| 9 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 | |
| 12 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 | |
| 15 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 | |
| 18 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 | |
| 3200 | 6 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 |
| 9 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 | |
| 12 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 | |
| 15 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 | |
| 18 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 | |
| 5000 | 6 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 |
| 9 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 | |
| 12 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 | |
| 15 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 | |
| 18 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 | |
| 6300 | 6 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 |
| 9 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 | |
| 12 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 | |
| 15 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 | |
| 18 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 | |
