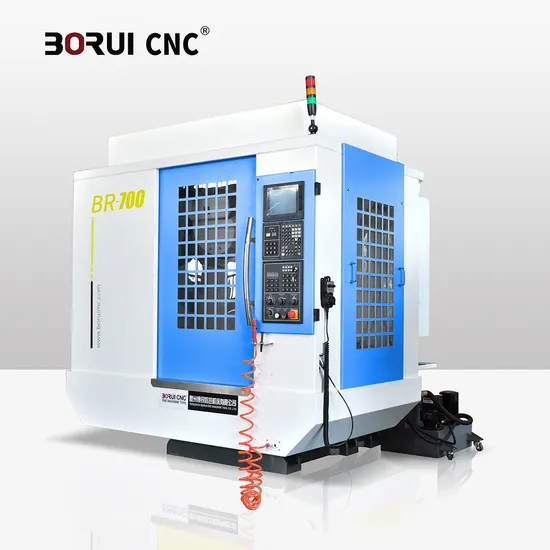

Br-700 CNC Drilling and Tapping Machine Full Automatic Drilling Tapping Machine High Speed Drilling and Tapping Machine

Product Description

BR-700 high speed drilling and tapping machine fanuc cnc drilling and tapping machine automatic drill and tapping machine
Product Description

Application:
Vertical drilling and tapping center is mainly used to process plate, disc, shell, mold and other parts with high precision, multiple processes and complex shape. It can continuously complete milling, drilling, reaming, reaming, boring, tapping and precise machining of two-dimensional three-dimensional curved surface and inclined plane in one clamping process. The processing is programmed and the production cycle is shortened, so that users can obtain good economic benefits.
Such cnc tapping center has following features:
1. the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology.
2. the inner metallographic structure is very steady.
3. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis.
4. the basic parts have high steel nature by collocating with the reinforcing rib.
5. with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.
6. High speed and high precision spindle, max. can be 24000rpm:
7. CE Standard and CE Certificate; Product Parameters

BORUI CNC SPECIFICATION
Product name		Drilling and Tapping Center
Model		Terms	BR-600	BR-700
	X-axis Travel	mm	600	700
	y-axis Travel	mm	400	400
Capacity	Z-axis Travel	mm	350	350
	Spindle nose to table surface	mm	135-485	170-620
Spindle	Spindle Speed	rpm	20000/2400	20000
	Tool storage capacity	PCS	21	21
	Max.tool diameter (adjacent tools)	mm	50(120)	125
A.T.C	Max tool length	mm	250	250
	Max tool weight	kg	3	25
	Tool change time(T-T)	sec	1.6	1.3
Motor	Spindle power (30-minute stop-motion)	kw	3.7/5.5	3.7/5.5
	X/Y/Z-axis motor power	kw	1.5/1.5/3.0	1.5/1.5/3.0
Worktable	Table size	mm	700x420	700x420
	Table T slot size (No. - width)	mm	3*14*125	3---18
	Worktable-Loading	kg	300	300
Fast Rapid	X-axis fast rapid	m/min	48	48
	Y-axis fast rapid	m/min	48	48
	Z-axis fast rapid	m/min	48	48
	Cutting feed rate	Mm/min	5-20000	5-20000
Accuracy	Positioning accuracy	mm	±0.003/300	±0.003/300
	Repeatability positioning accuracy	mm	±0.005/300	±0.005/300
Machine size	Weight	kg	3500	3500
	Power demand	KVA	20	20
	Overall Size	mm	2220X1900X2300	2220X1900X2300
	Tank capacity	L	210	210
	Compressed air	Kg/m2	6--8	6--8

Details Display

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
Our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile


FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
