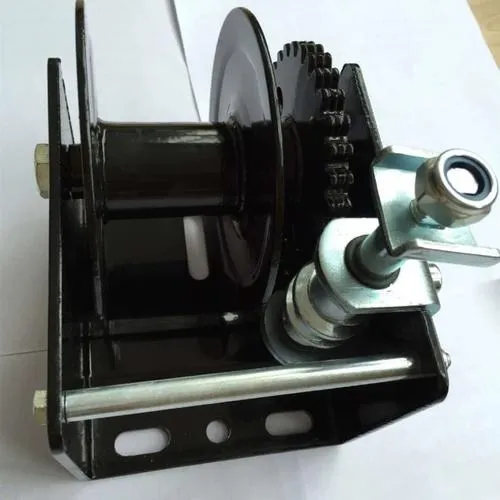

Worm Gear Winch for Poultry (2000lbs)

Product Description

Product Parameters
3500lbs ceiling winch, blue
1. 2000 lb. Capacity
2. Self-braking
3. 41: 1 gear ratio
4. Loop drive
5. Drum Dimensions: 4 3/4" OD & 1 3/4" ID
6. 1/8" Cable Capacity: 134' (67' per side)
7. Oven-cured epoxy coating lasts longer than conventional zinc, chrome or enamel finish
8. Shafts and gears are made of high tensile alloy steel
9. All gears are heat-treated, high-carbon steel to provide longer life
We also supply the accessories. Introduction
We also supply hand winch accessories & parts, such as winch handle, winch bracket, cable, strap, etc.
Hand cranked winch is a common lifting equipment that lifts or pulls heavy objects by manually rotating the handle. Hand cranked winches are usually used in situations that require temporary lifting, such as in the field, construction sites, or vehicle maintenance. It is very important to understand the different types of hand cranked winches and their differences when choosing a hand cranked winch. Hand cranked winches can be divided into two main types: single speed and multi speed. Single speed hand cranked winches have only one speed range and are typically used for lighter lifting tasks, while multi speed hand cranked winches have multiple speed ranges that can be adjusted as needed and are suitable for lifting tasks of different weights and distances. In addition, hand cranked winches can be distinguished based on their structure and purpose, including gear type, screw type, and hydraulic type. Gear type hand cranked winches are suitable for heavier lifting tasks, screw type winches are suitable for lighter lifting tasks, and hydraulic type winches use hydraulic systems to lift or pull heavy objects, making them suitable for lifting tasks that require more precise control.
Detailed Photos
