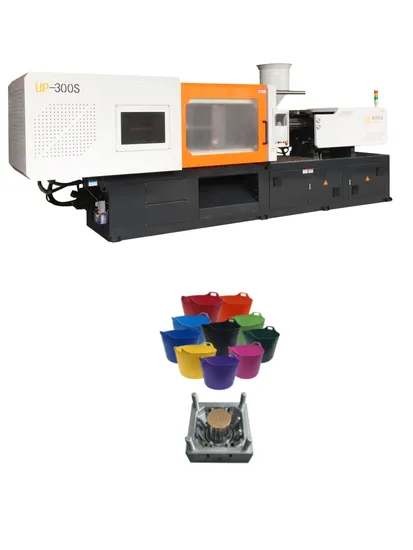

Small Injection Parts for Household Plastic
| US$29,000.00-32,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-300T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
18.5t
Tank Volume
400L
System Pressure
16MPa
Transport Package
Film Packing
Specification
6.3*1.75*2.37
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description
Ningbo Union Power Machinery Co., Ltd.
Located near Shanghai in Ningbo, our factory specializes in manufacturing injection molding machines, molds, and auxiliary equipment. Our injection molding machines range from 50 to 3000 tons with a tensile resistance of up to 40000 g. Our machine family includes:
Standard injection molding machine
PVC injection molding machine
PET injection molding machine
Two-color ejector
Fully hydraulic injection molding machine
All-electric injection molding machine
China servo injection molding machine
Key Features:
A. Modulus of Capacitance: Guide pillar specifications including position, size, and maximum allowable modulus of capacitance.
B. Nozzle Parameters: Nozzle details such as spherical diameter, aperture, outer diameter, and extension length.
C. Code Mold Parameters: Mold hole and slot size specifications.
D. Ejection Mechanism: Ejection point position, ejector rod diameter, ejection force, and stroke details.
E. Mold Opening: Mold opening stroke and maximum opening distance information.
| Technical Parameters | Model UP-300T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 60 | 65 | 70 |
| Shot Volume (cm3) | 806 | 946 | 1096 |
| Injection weight (g) | 725 | 851 | 987 |
| injection pressure (Mpa) | 170 | 145 | 107 |
| Screw speed (rmp) | 220 | ||
| Clamping Unit | |||
| Clamping force (KN) | 3000 | ||
| Open stroke (mm) | 600 | ||
| Max Mold height (mm) | 620 | ||
| Min Mold height (mm) | 200 | ||
| Space between tie bars(mm) | 620*620 | ||
| Ejector force (KN) | 70 | ||
| Ejector stroke (mm) | 150 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 30(29) | ||
| Heating power (KW) | 18.5 | ||
| Machine dimension (M) | 6.3*1.75*2.37 | ||
| Machine weight (T) | 9.3 | ||
| Oiltank cubage (L) | 400 | ||
