Armored Cable 4X16mm2 Power Cable XLPE Insulation Armoured

Product Description

Product Description Armored Cable 4X16mm2 Power Cable XLPE Insulation Armoured Cable 1 3 4 5Core
Construction : Conductor: Solid & stranded copper wire class1&2 acc.to IEC60228 Solid & stranded Aluminium wire Insulation:PVC Compound Filler: PVC Compound Sheath:PVC Compound Sheath Color:White ,Black,Grey Techical Data :
Standard:IEC 60502-1 / VDE 0276 /NT88-22
Fixed installed: -15ºC up to 70ºC
At short circuit of max.5s up to 160ºC
Nominal Voltage : 600/1000V

Min inner bending radius:
Single coe:15D
Multi core:12D
Behaviour in fire:
Flame retardant cable acc.to IEC60332-1
Application:
PVC power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants, same as for connection of signalling devices in industry, traffic and similar.
Technical Parameters:

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Insulation thickness	Nominal Sheath thickness	Nominal Overall diameter	Nominal Cable weight	Max.Resistance of conductor at 20ºC
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)
Three core PVC Power Cables CU/XLPE/PVC( AL/XLPE/PVC )
3x1.5	2x 1.38	0,7	1,8	11.3	130	12,10
3x2.5	7 x 0,67	0,7	1,8	11.8	170	7,41
3x4.0	7 x 0,85	0,7	1,8	13.1	230	4,61
3x6.0	7 x 1,04	0,7	1,8	13.9	305	3,08
3x10	7 x 1,35	0,7	1,8	17.5	450	1,83
3x16	7 x 1,70	0,7	1,8	18.2	615	1,150
3x25	7 x 2,14	0,9	1,8	19.1	870	0,727
3x35	7 x 2,52	0,9	1,8	21.1	1155	0,524
3x50	19 x 1,78	1,0	1,8	23.8	1530	0,387

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Insulation thickness	Nominal Sheath thickness	Nominal Overall diameter	Nominal Cable weight	Max.Resistance of conductor at 20ºC
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)
Four core PVC Power Cables CU/XLPE/PVC( AL/XLPE/PVC )
4x1.5	2x 1.38	0,7	1,8	12.1	150	12,10
4x2.5	7 x 0,67	0,7	1,8	13.2	200	7,41
4x4.0	7 x 0,85	0,7	1,8	14.9	275	4,61
4x6.0	7 x 1,04	0,7	1,8	16.1	370	3,08
4x10	7 x 1,35	0,7	1,8	18.6	560	1,83
4x16	7 x 1,70	0,7	1,8	20.2	795	1,150
4x25	7 x 2,14	0,9	1,8	21.8	1130	0,727
4x35	7 x 2,52	0,9	1,8	24.1	1515	0,524
4x50	19 x 1,78	1,0	1,9	27.5	2010	0,387
4x70	19 x 2,14	1,1	2,0	31.7	2860	0,268
4x95	19 x 2,52	1,1	2,1	35.4	3870	0,193
4x120	37 x 2,03	1,2	2,3	39.2	4850	0,153
4x150	37 x 2,25	1,4	2,4	43.8	5980	0,124
4x185	37 x 2,52	1,6	2,6	48.7	7480	0,0991
4x240	61 x 2,25	1,7	2,8	54.4	9735	0,0754
4x300	61 x 2,52	1,8	3,0	59.9	12120	0,0601

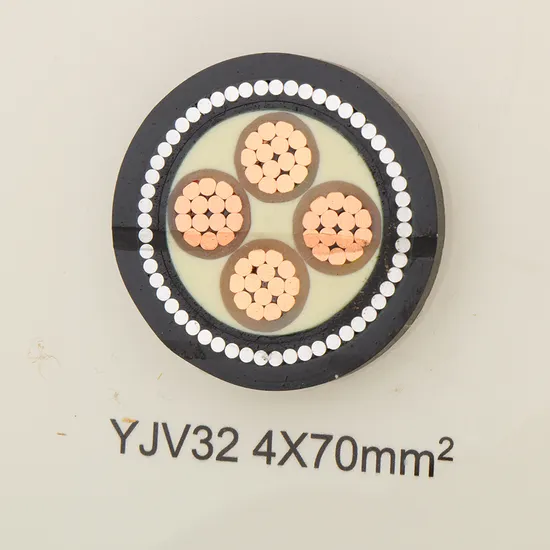

Product Show:
Power cables is used in power transmission and distribution line.It does not only have excellent electric, mechanical properties,but also has powerfulresistance against chemical corrosion, heat aging and environmental stress.
Features: Conductor: creep resistance, high flexibility, strong extended, low rebound, connection stability.Insulation: high temperature resistant, anti-burning, anti-aging, strong and durable, low-carbon environment.Armored layer: Lower cost and better performance, a special form of interlocking, sturdy and tough.Outer sheath:without lead, cadmium in PVC, can be installed in wet or damp locations, can also be directly buried or laid in the construction.
