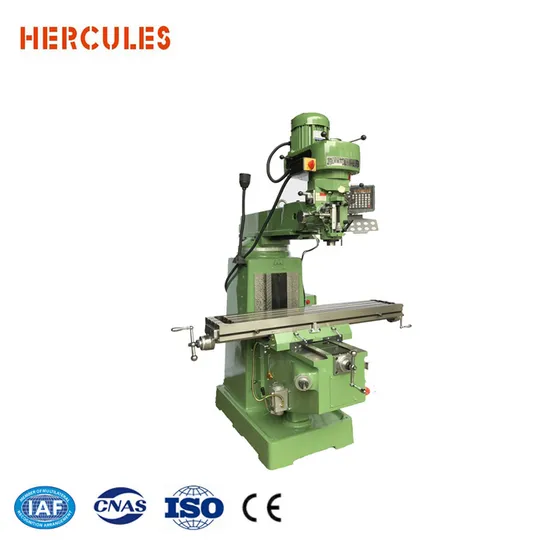

X6323 OEM Mill-drill Turret Milling machine from China for metal process
| US$3,300.00-7,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
M2V or X6323
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001, UL
Condition
New
Table size(L*W)
1067*229mm or 1245*229mm
Transport Package
Pallet
Specification
1550*1500*2100mm
Trademark
Hercules or OEM
Origin
China
HS Code
8459699000
Production Capacity
20000sets/Year
Product Description
M2V Manual Turret Vertical or Knee type milling machine for metal, Taiwan Spindle| Model | M2V | M3V | M4VA | M4VB | M5SV | M5V |
| Precision High Accuracy Series | ||||||
| Table size(L*W)(mm) | 1067x230 | 1270x254 | 1270x254 | 1270x254 | 1270x254 | 1370x305 |
| Max.load of table (kg) | 300 | 300 | 300 | 300 | 300 | 350 |
| X axis(mm) | 720 660 with power feed | 900 810 with power feed | 900 810 with power feed | 900 810 with power feed | 900 810 with power feed | 1000 900 with power feed |
| Y axis(mm) | 330 | 380 | 380 | 380 | 380 | 400 |
| Z axis (mm) | 360 | 360 | 360 | 360 | 360 | 360 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63.5 | 3-15.88x65 | 3-15.88x65 | 3-15.88x65 | 3-15.88x65 | 3-15.88x75 |
| Distance between spindle and table(mm) | 50-410 | 50-410 | 50-410 | 50-410 | 50-410 | 100-480 |
| Ram travel (mm) | 380 | 520 | 520 | 520 | 520 | 660 |
| Travel of spindle quill (mm) | 127 | 127 | 127 | 127 | 127 | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 |
| Spindle speed(rpm)(60Hz) | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 70-3600rpm 10steps | 70-3600rpm 10steps |
| Spindle hole taper | R8 / NT30(optional) | R8 / NT30 (optional ) | R8 / NT30 (optional ) | R8 / NT30 (optional ) | NT40 | NT40 |
| Main Motor | 3HP | 3HP | 3HP | 3HP | 5HP | 5HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º | left and right±45º forward and backward±45º | left and right±45º forward and backward±45º | left and right±90º forward and backward±45º | left and right±45º | left and right±45º |
| Guiding tracks(X.Y.Z) | △△△ | △△△ | X/Z dovetail and Y square guideway | X dovetail and Y/Z square guideway | X dovetail and Y/Z square guideway | X dovetail and Y/Z square guideway |
| Dimension(L*W*H)(mm) | 1550x1500x2100 | 1750x1500x2100 | 1750x1650x2150 | 1750x1650x2150 | 1850x1650x2300 | 1850x1650x2300 |
| Milling head | Round step milling head | Round step milling head | Round step milling head | Round step milling head | Square head with side brake | Square head with side brake |
| Weight (kg) | 950 | 1200 | 1250 | 1300 | 1375 | 1450 |
| Optional milling head:Round step milling head; Square head with side brake milling head; Variable stepless milling head Optional accessories: Coolant pump, Chip pan, R8, 7/16"draw bar aluminium working lamp, machine vise, clamping kits, R8/NT30/NT40 collet sets with chuck, X/Y/Z axis power feed 2 or 3 axis DRO with 1u or 5u resolution |
Hercules Machinery Equipment Ltd.
