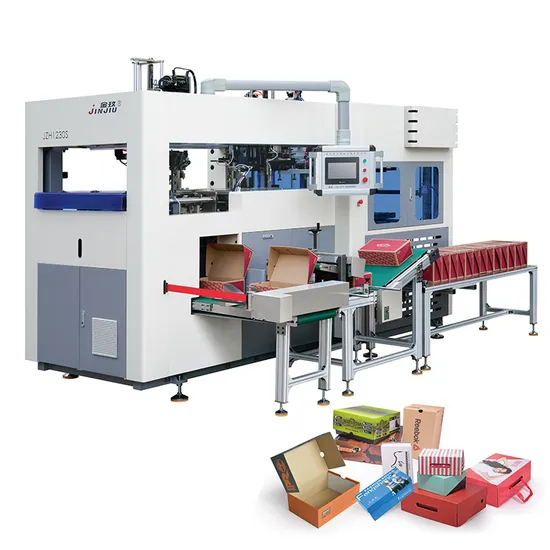

Jzh-1230d Automactic Integrated Cover Carton Shoe Box Glueing Forming Machine

Product Description

Heaven and Earth Box Making Machine Mailer Box Folding Machine Top and Bottom Box Making Machine

JZH-1230D Automatic Integrated Cover Paper Box Making Machine (Shoe box) USAGE:
The machine is mainly used for packaging Integrated cover carton production, processing packaging boxes are widely used in clothing and footwear; crafts, daily necessities packaging; electronics, electrical boxes; and hardware, standard parts, such as the need for packagingproducts manufacture paper boxes.
Machine details
TECHNICAL PARAMETERS:

Thickness of cardboard	1.5mm-3mm
Power	380V / 50Hz
Noise	≤ 80dB
Speed	2100-2600 (Pieces/hour)
Cardboard stacking height	800mm
Stacked weight	150 kg
Total power	12kw
Air source	400 L/Minute
Machine weight	2500kg
Dimensions	4150×2550×2800mm

PACKAGING BOXES SPECIFICATIONS:

Paper board Size (A=Width B=Lenth)	A: Min. size	345mm
	A: Max. size	710mm
	B: Min. Size	470mm
	B: Max. size	945mm
Inside Edge Size (R)	Min. size	20mm
	Max. size	40mm
Box size Length=L Width=W Hight=H Hight= K(cover)	L: Min. Size	165mm
	L: Max. size	380mm
	W: Min. Size	100mm
	W: Max. size	280mm
	H: Min. Size	70mm
	H: Max. size	125mm
	K: Min. Size	30mm
	K: Max. size	125mm

Schematic Layout Of Box Forming
FEATURES:
1. Hot melt advice system;
2. Using PLC programmable controller, photoelectric tracking system, gas source detection and operation system, touch screen man-machine interface, and implementing the whole automation process of the formation of the foldable boxes;
3. Infrared safety protection system to ensure the safety of operation personnel;
4. Automatic fault diagnosis function;
5. Automatic quick mold adjustment function;
6. Numerically controlled mold change, fast and with memory function;
7. Rack cage design, integral processing, grouped combination;
8. Small footprint and good stability;
9. Automatic box covering;
10. Cycle refueling function.
