Low Energy Consumption Wear Resistance Mining OEM ODM Custom Portable Jaw Crusher

Product Description

Product Description

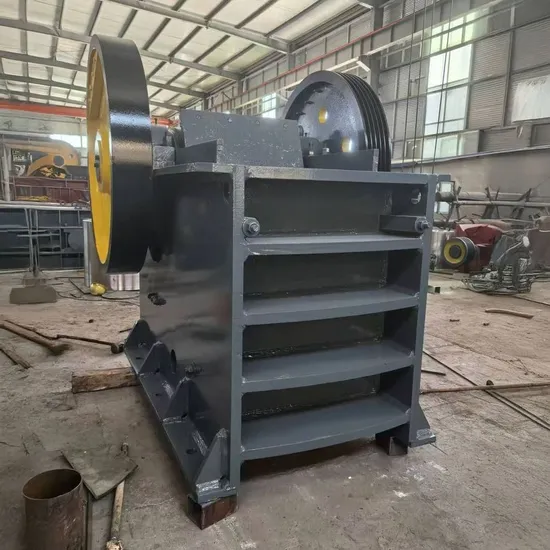

Jaw Crusher
A jaw crusher is mainly used for medium-sized crushing of various ores and bulk materials. It can crush materials with a compressive strength of less than 320Mpa. It is divided into coarse crushing and fine crushing. PE series products have complete specifications, and their feed size is 125 mm~750 mm. It is the preferred equipment for primary crushing.
The Electric Motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the elbow plate and the movable jaw increases, thus pushing the movable jaw plate to the fixed jaw plate. At the same time, the material is crushed or chopped, to achieve the goal of fragmentation, when moving the jaw down. The angle between the toggle plate and the smaller. The movable jaw plate leaves the fixed jaw plate under the movable jaw becomes the action of the pull rod and the spring. At this time, the broken material has been discharged from the lower opening of the crushing chamber with the continuous rotation of the motor, the movable jaw of the crusher moves periodically to crush and excrete material, thus realizing batch productionPE jaw crusher is a kind of crushing equipment widely used in many industries such as mining, building materials, chemical industry, etc. It is mainly used for coarse and medium crushing of ores and rocks of various hardness and can crush large pieces of materials into smaller particles, providing suitable material particle size for subsequent grinding, screening ,and other processes.Product Parameters

PE JAW CRUSHER SPECIFICATION
Product Name	PE Jaw Crusher
Keywords	Mining Crusher
Core Components	Motor
Motor Type	AC Motor
Color	Customized
Crusher Feed Size	125mm~750mm
Crushing Type	Coarse Crushing/Fine Crushing
Applicable Materials	Medium Particle Size For Bulk Materials
Crushing Compressive Strength	Not Exceeding 320MPa
Key Selling Points	Easy to Operate
Features	Simple Structure,Large Crushing Ratio,High Production Efficiency
Usage	Mining And Construction
Condition	New
MOQ	Low MOQ
OEM & ODM Custom	Accept
There are errors in measurement, please refer to the actual situation.

SPECIFICATION
Production(t/h)	Notor power(kw)	Weight(t)	Dimensions(mm)
2-6	5.5	1.1	900*750*950
10-20	15	3	1450*1280*1350
15-30	18.5	4	1450*1350*1350
20-50	30	6	1700*1700*1650
40-90	45	11	2000*1950*1900
50-120	55	12.5	2200*1960*1950
90-200	75	18	2400*2230*2400
100-260	75	19.5	2400*2280*2400
150-350	90	26	2500*2370*2780
300-350	110	45	3200*2820*3260
500-800	160	75	3850*3050*4000
800-1000	200	90	4050*3150*4200
900-1300	220	122	5100*4700*4300
1000-1500	355	169	5600*5020*4950

Detailed Photos
STRONG CRUSHING FORCE
PE jaw crusher adopts advanced design principles, and the bite angle of the movable jaw and the fixed jaw is carefully calculated to generate strong crushing force. When the material enters the crushing chamber, the movable jaw and the fixed jaw work closely together to exert huge extrusion and shearing forces on the material, easily crushing ores and rocks of various hardness.COMPACT STRUCTURE
The structural design of the equipment is very compact, and the layout of each component is reasonable. The frame adopts an integrated welded structure, which is not only sturdy and durable, but also occupies a small area. The installation position of key components such as the movable jaw and the fixed jaw is precise, making the entire crusher more stable during operation.EASY MAINTENANCE
The maintenance of the PE jaw crusher is relatively simple and convenient. Its wearing parts such as the jaw plate are quickly replaced, because the fixing method of the jaw plate is reasonably designed, usually fixed with wedges or bolts, and the staff can complete the replacement of the jaw plate in a short time.STABLE PERFORMANCE
During the long-term operation, the PE jaw crusher has shown good performance stability. Its transmission system uses high-quality parts, operates smoothly, and has low noise. Key components such as the eccentric shaft and flywheel are precisely processed and dynamically balanced to ensure uniform and stable reciprocating motion of the movable jaw.WIDE RANGE OF APPLICATIONS
PE jaw crusher is suitable for crushing a variety of materials, whether it is high-hardness ores such as iron ore and copper ore, or low-hardness limestone and coal gangue, etc., it can be effectively crushed. It can be used for coarse crushing to crush large pieces of material into medium particle size, and can also be used for medium crushing to further reduce the particle size of the material.FAQ
Q1: Are you a factory or trading company?
A: We were established in 2009, as a large-scale integrated enterprise of engineering equipment research and development.
Q2: Where is your factory located? How can I visit there?
A: Our factory is located in Zibo City, Shandong Province, China. Contact us ahead before you go visit, then we can fully arrange
the schedule and meet you.Welcome to visit us!
Q3: How does your factory do regarding quality control?
A: Quality is the most important principle. Hurric people always attach great importance to quality control from the very
beginning to the very end. Our factory has passed ISO and CE certification.
Q4: Is the product customized?
A4: Various types can be customized.
Q5: What is your warranty?
A: Our warranty is 12 months after receiving the centrifugal fans. During the warranty period, replace the damaged parts free of
charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure.
continuous safe and high-quality equipment operation.
Q6: What are your terms of payment?
A: TT 30% as the advance payment and TT 70% after inspection before shipping.
B: 100% Irrevocable L/C at sight.
Q7: What products do you produce?
A: Excavators, brick-making machines, shotcrete machines, and other road construction and agricultural household machinery and
equipment.
