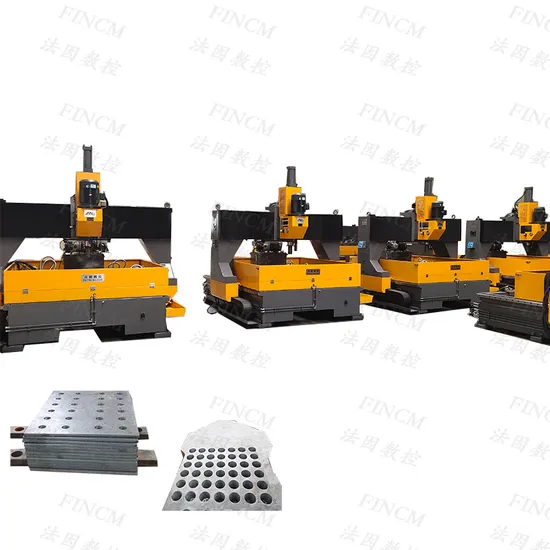

PHD3020 FINCM Steel Structure CNC Drilling Machine For Plates
PHD3016 CNC High Speed Drilling Machine for Steel Plates . Product Description
Main Technical Specifications:

Specification name	Items			Specification valve
Workpiece dimension	Material overlapping thickness			Max. 100mm
	Width ×length			3000mm×1600mm
Spindle	Spindle boring			BT50
	drill diameter			Ordinary twist drill maximum Φ50mm Hard alloy drill maximum Φ40mm
	Carbide drilling depth			≤2d
	Rotate speed			0-2000r/min
	Travel length			350mm
	Spindle frequency conversion motor power			15KW
Workpiece clamp	clamp thickness			15-100mm
	Clamp force			7.5kN
	Clamp start			Foot switch
Hydraulic	Clamp pressure			6MPa(60kgf/cm2)
	Capacity of tank			About 100L
Air pressure	Gas source demand			0.8MPa
	Hydraulic pump			2.2kW
	X axle servo system			2.0kW
	Y axle servo system			1.5kW
	Z axle servo system			2.0 KW
	Chip conveyor			0.75kW
Control axle number		X. Y (point control) Z (spindle, servo feed)
Travel range		X axle	3000mm
		Y axle	1600mm
		Z axle	350mm

List of Free Accessories to be shipped together with the machine:

NO	Code	Name	Quantity	Remark
1	BT50-40	Hilt	1
2	BT50-I	Pull nail	1
3		"O"ring 16×2.4mm	5 pcs
4		"O"ring 11×1.9mm	5 pcs
5		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear rolling guide pair	HIWIN/PMI/ABBA	Taiwan, China
2	Ball screw	HIWIN/PMI	Taiwan, China
3	Solenoid valve	ATOS/YUKEN	Italy / Japan
4	servo motor	Siemens / Mitsubishi	Germany / Japan
5	Servo driver	Siemens / Mitsubishi	Germany / Japan
6	Programmable controller	Siemens / Mitsubishi	Germany / Japan
7	Spindle	Kenturn	Taiwan, China
8	Centralized lubrication	HERG/BIJUR	Japan / USA
