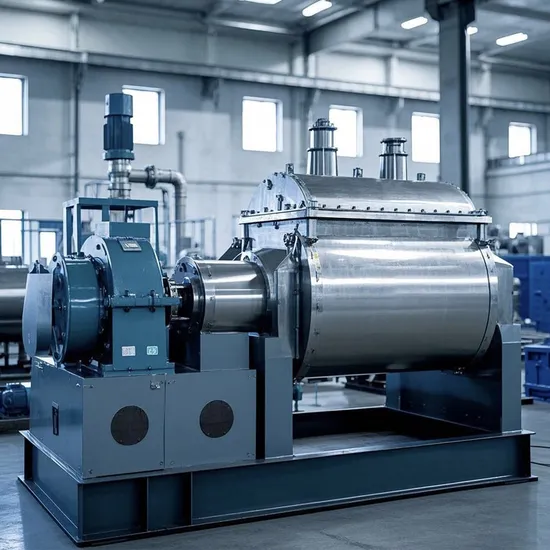

Hot Melt Adhesive Complete Production Equipment Hot Melt Adhesive Stick Production Line

Product Description

Detailed Photos Product Description
The characteristics of the production line: 1) Foshan JCT Machinery Co. ltd.,It is a professional manufacturer of adhesive equipment,Have more than 20 years of design and manufacturing experience in adhesive equipment.A great understanding of the requirements of the adhesive production equipment,According to the products and capacity requirements of customers, we design the whole production line, including production process, production site planning, equipment selection and configuration, equipment manufacturing, equipment installation and commissioning. 2)JCT- hot melt adhesive production line is suitable for the production of various kinds of viscosity, various shapes of hot melt adhesive (lump, strip, granular), good mixing effect, quality stability, specifications and shapes can be according to requirements. 3) It can be produced continuously for 24 hours, with large output and high efficiency. 4) The production equipment adopts the special mixing structure, greatly improves the mixing effect, can make the material mix evenly quickly, fully plasticizes, guarantees the product quality, can produce each kind of request, the high quality hot melt adhesive; 5) The cooling water machine can be arranged according to the production requirements, so that the cooling water temperature can be maintained at 5-10 ºC, so that the cooling effect can be improved and the production efficiency can be improved. Production technology: 1) JCT has designed and manufactured hot melt adhesive equipment for more than 20 years. It has provided many production facilities for many hot melt adhesive factories, and has met many hot melt adhesive technology engineers, and has strong technical team.
2) if the customer needs, we can provide technical support.
Specifically included:
(1) according to the customer needs to produce products, provide reasonable
equipment selection, equipment matching;
( 2 ) According to the requirements of the customer to provide the latest production
formula, mature production process;
(3)Provide the cost accounting of raw materials;
(4)supply of raw material suppliers;
(5)Answer the problems in the process of production in a timely manner.


According to the shape of the product, the production line can be divided into three categories (the size of the equipment, the quantity according to the quantity of production). A) bulk hot melt adhesive production line B) granular hot melt adhesive production line C) strip hot melt adhesive production line

name	Production process of bulk hot melt adhesive	strip hot melt adhesive production line	Underwater granulation	Out of water granulation
Equipment configuration	Reaction kettle (or kneader); Material mixing tank High viscosity discharge pump, Filter system, Heating system, vacuum system	reaction kettle (or kneader); storage tank high viscosity discharge pump, filter system, heating system, screw extruder cooling water tank, ice water machine, full automatic traction and cutting machine;	reactor (or kneader); storage and mixing tank high viscosity discharging pump or discharging screw filtration system, screw extruder and the die head underwater granulator cooling water channel, 8) dehydrator, vibrating screen; cyclone separator heating system, cooling system	reaction kettle (or kneading machine); storage tank, high viscosity discharge pump, filtration system, heating system, screw extruder cold water machine traction granulator. Capacity selection
output	1)500KG/4-5H2)1000KG/4-5H 3)2000KG/4-5H 4)3000KG/4-5H 5)4000KG/4-5H 6)5000KG/4-5H	1)100KG/H 2)200KG/H 3)300KG/H 4)500KG/H 5)1000KG/H6)1500KG/H	1)300KG/H 2)500KG/H 3)800KG/H 4)1000KG/H 5)1200KG/H	1)300KG/H 2)500KG/H 3)800KG/H 4)1000KG/H
Can be designed according to the capacity of the demand side

Model	Cylinder volum(L)		Drive motor power (KW)	Stirring speed (rpm)	Discharge mode			Heating
	Full volume	Feeding amount		Paddle fast / slow paddle
NHZ5	5	3	2.2-4	75/50	Turn cylinder			Hot oil	Power	Steam
NHZ20	20	12	3-5.5	63/42	Turn cylinder
NHZ50	50	30	4-7.5	63/42	Turn cylinder
NHZ100	100	60	5.5-7.5	43/29	Turn cylinder
NHZ200	200	120	7.5-15	43/29	Turn cylinder	The material under	Screw the material
NHZ300	300	180	11-18.5	43/29
NHZ500	500	300	18.5-30	43/29
NHZ1000	1000	600	22-55	32/22
NHZ1500	1500	900	30-90	32/22
NHZ2000	2000	1200	45-110	32/22
Remarks: 1,Temperature range: 0-300° 2, Pressure range:-0.1-0.6MPa

Available products:
about us
FAQ
Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
