W11-40X3200 Mechanical Type Three Roller Rolling and Bending Machine

Product Description

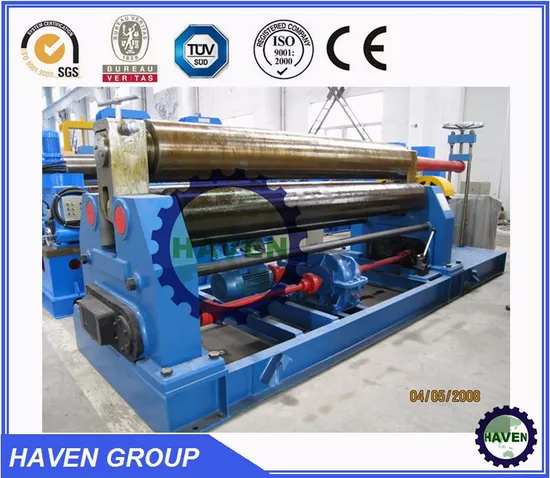

W11-40X3200 Mechanical Type three roller Rolling and Bending Machine:
This machine structure pattern three roller symmetrical type, the roller in two central symmetrical
Position under the roller moves vertically through the screw worm and silk mother, The two lower
Rollers rotates through the gear reducer output and lower rollers Gear mesh, to provide torque for
The roll sheet. The machine disadvantage is that end plate bending requires the use of other devices.

Model	Max. thickness	Max. width	Bending speed	Workpiece Min. Dia.	Top roller Dia	Bottom roller Dia.	Dis. bottom rollers	Main motor	Net weight (About)
W11-4*3000	4mm	3000mm	5m/min	450mm	140mm	160mm	220mm	5.5kw	3200kgs
W11-6*2000	6mm	2000mm	5m/min	430mm	170mm	170mm	220mm	5.5kw	2890kgs
W11-6*2500	6mm	2500mm	4m/min	550mm	220mm	170mm	250mm	7.5kw	3200kgs
W11-6*3000	6mm	3000mm	4m/min	600mm	240mm	190mm	280mm	7.5kw	4500kgs
W11-8*2000	8mm	2000mm	5m/min	480mm	190mm	170mm	220mm	5.5kw	3300kgs
W11-8*2500	8mm	2500mm	4m/min	600mm	240mm	180mm	280mm	7.5kw	4200kgs
W11-8*3000	8mm	3000mm	4m/min	600mm	240mm	180mm	280mm	11kw	5200kgs
W11-10*2000	10mm	2000mm	4m/min	550mm	220mm	170mm	250mm	7.5kw	4100kgs
W11-10*3000	10mm	3000mm	4m/min	650mm	260mm	220mm	340mm	11kw	5800kgs
W11-12*2000	12mm	2000mm	4m/min	600mm	240mm	180mm	280mm	7.5kw	4800kgs
W11-12*2500	12mm	2500mm	4m/min	650mm	260mm	220mm	320mm	11kw	5800kgs
W11-12*3000	12mm	3000mm	4m/min	700mm	280mm	240mm	360mm	15kw	8000kgs
W11-16*1500	16mm	1500mm	5m/min	600mm	240mm	180mm	280mm	7.5kw	4200kgs
W11-16*2000	16mm	2000mm	4m/min	650mm	260mm	220mm	320mm	11kw	5050kgs
W11-16*2500	16mm	2500mm	4m/min	700mm	280mm	240mm	360mm	15kw	6500kgs
W11-16*3200	16mm	3200mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8500kgs
W11-20*2000	20mm	2000mm	4m/min	700mm	280mm	240mm	360mm	11kw	6450kgs
W11-20*2500	20mm	2500mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8500kgs
W11-20*3000	20mm	3000mm	4m/min	930mm	370mm	280mm	440mm	22kw	11500kgs
W11-25*2000	25mm	2000mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8400kgs
W11-25*2500	25mm	2500mm	4m/min	930mm	370mm	280mm	480mm	22kw	12500kgs
W11-30*2000	30mm	2000mm	4m/min	930mm	370mm	280mm	480mm	22kw	12000kgs
W11-25*3000	25mm	3000mm	4m/min	930mm	370mm	280mm	480mm	22kw	12000kgs
W11-30*3200	30mm	3200mm	4m/min	930mm	370mm	280mm	480mm	22kw	12000kgs

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
