100tph High Quality Dolomite Quarry Impact Crusher

Product Description

100tph High Quality Dolomite Quarry Impact Crusher Product Description

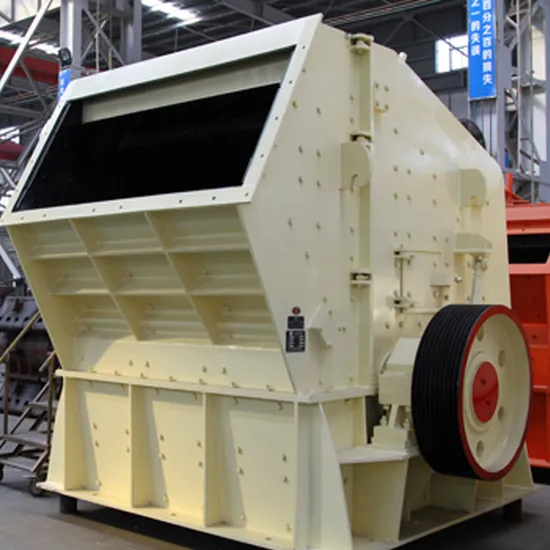

Hongji's impact crushers feature a unique combination of heavy rotor design, materials selected for good wear resistance and crusher chamber design. This combination has proven revolutionary in improving capacity and product quality and in reducing operating and wear costs. The size of the discharge material can be adjusted, and the crushing specifications are diversified. The impact crushers deliver unbeatable performances in primary, secondary, tertiary and recycling applications. Featurers
1.Good broken grain shape
The crushed products are mostly cubic in shape, with uniform particle size and strong adaptability. They can crush hard, soft, brittle and tough materials with high water content.
2.Large crushing ratio
It can complete medium and fine crushing or coarse, medium and fine crushing operations at one time, greatly simplifying the production process.
3.High crushing efficiency
Energy consumption is low, generally 0.5~1.3kw.h/t. Because the impact strength of the material is more than ten times smaller than the compressive strength, the impact crusher saves 1/3 of the energy than the jaw crusher and 1/2~4/5 of the energy than the roller crusher.
4.Easy maintenance and adjustment
The hydraulic cylinder is opened to facilitate replacement of the plate hammer. The discharge particle size can be adjusted.
5.Large loss
The impact lining plate and impact plate hammer are damaged quickly.
Applied material : limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc.
Product Parameters

Model	Feeding opening (mm)	The Naximum Feeding Size(mm)	Capacity (t/h)	Power(kw)	Overall dimension (L×W×H)(mm)	Total weight (t)
PF-1007	400×730	300	30-70	37-45	2330×1660×2300	12
PF-1010	400×1080	350	50-90	45-55	2370×1700×2390	15
PF-1210	400×1080	350	70-130	110	2680×2160×2800	17.7
PF-1214	400×1430	350	80-180	132	2650×2460×2800	22.4
PF-1315	860×1520	500	100-280	200	3180×2720×3120	27
PF-1320	993×2000	500	140-380	250	3220×3100×3120	34
PF-1520	830×2040	700	200-550	315-400	3959×3564×3330	50.6
PF-1820	1260×2040	800	400-800	630-710	4400×3866×4009	83.21

Working Priciple
When the machine is working, driven by the motor, the rotor rotates at a high speed. When the material enters the action zone of the plate hammer, it will impact and break with the plate hammer on the rotor, and then it will be thrown to the counter device to break again, and then bounce back from the counter liner to the plate hammer action zone to break again. This process is repeated, and the material will enter the first, second and third counter cavities from large to small to break again. Until the material is broken to the desired particle size, it is discharged through the discharge port.
