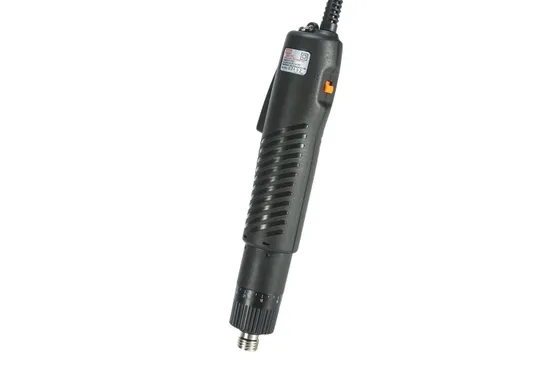

Bsd-102L Screwdriver Low Torque Compact DC Semi-Automatic Screwdriver for Production Line
| US$34.45-60.54 | 10 Sets (MOQ) |
Basic Info.
Model NO.
BSD-102
Voltage
DC Low Voltage
Power Supply Voltage
220V
Automation
Semiautomatic
Power Source
Electricity
Function
Professional, Household
Condition
New
Customized
Non-Customized
Input Voltage
DC 36V
Torque (N.M)
0.4~3.5
Power Consumption
45W
Speed (r.p.m)
1000
Applicable Screw Size
2.6~5.0 mm
Starting Method
Trigger Start
Transport Package
33.5*11*9cm
Specification
DC TYPE ELECTRIC SCREWDRIVER WITH POWER SUPPLY
Trademark
BSD
Origin
China
HS Code
84672990
Production Capacity
50000 Piece/Year
Product Description
FeaturesEconomic Value Models. High stability, NOT impact of Voltage changes , free from fatigue under long-time using. Small, light body , specially design for the precise needingof tiny screws. Torque accuracy and stability, rotation speed selected by switches Hi & Lo. applied to Small appliances,Electronics,Toys,Processing and assembly industry. Made in China. Specifications
| No | Item | Data | ||
| 1 | Torque | 0.4~3.5 N.m | 4.08~35.71 kgf.cm | 3.54~30.98 Lbf.in |
| 2 | Unloaded Rotation Speed(r.p.m) | 1000 | ||
| 3 | Torque Adjustment | Stepless | ||
| 4 | Screw Size Dia(mm) | 2.6~5.0(Machine Screw) | 2.6~4.0(Tapping Screw) | |
| 5 | Power Consumption | 45W | ||
| 6 | Weight(g) | 445 | ||
| 7 | Length(mm) | 230 | ||
| 8 | Repeatable Torque Accuracy (%) | ±5% |
External Dimention
Torque Range Reference Chart
Product Configuration1
Successful Project
Company Photo
