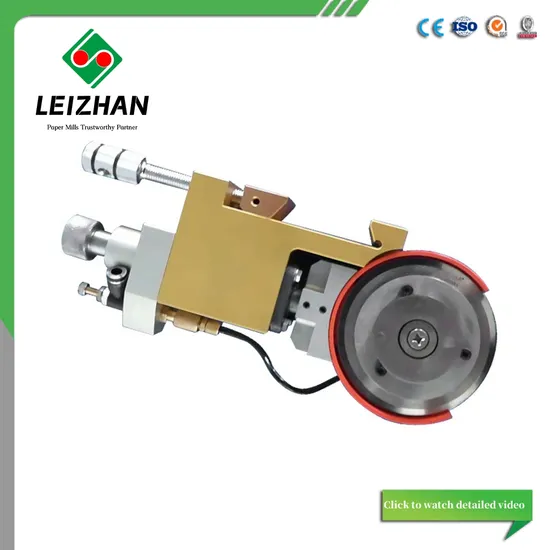

Pneumatic Knife Holder/Slitting Knife

Product Description

Product Description
Pneumatic knife holders are operated by using the energy of compressed air provided by an air compressor as the power source.
The pneumatic knife holder adopts one - piece forming design.
And provide good rigidity and strength, and can quickly combine with the knife, to achieve accurate alignment of the knife.
It has the advantages of time-saving, speed, and stability.
In modern high-performance production equipment, operating speed is higher, and cutting is more difficult.
So the need for more innovative, more professional solutions. According to the specific needs of customers, we provide tailor-made products, product life longer, more robust and reliable, better performance, and more convenient operation, to meet their requirements for the maximum return on equipment investment. Application :

1. Paper mill (all type of paper, dust-free paper, textured paper, kraft)
2. paper, wallpaper, adhesive paper, etc.); 3. Rubber (magnetic rubber, rubber plate, etc.); 4. Foam class (foam cloth, foam, etc.); 5. Cloth (natural cotton, trademarks, cloth, medicine fabric, non-woven fabric and synthetic leather cloth, dust-free cloth, etc.); 6. Plastic film (BOPP, PE, PET, adhesive tape, soft PVC, etc.). Detailed Photos Product Parameters
LZ-90/60 Pneumatic Knife Holder

Max lower cutting range	22mm		Min slitting width	40mm
By the knife	2mm		Max applicable slitting speed	600m/min
Work pressure	4-6kgf/m²		Max thickness of slitting paper	500g/m²
Quick connector	1/8		Max slitting film thickness	0.5mm

LZ-150/80 Pneumatic Knife Holder

Max lower cutting range	28/ 30mm		Min slitting width	60mm
By the knife	3mm		Max applicable slitting speed	1200 / 1500m/min
Work pressure	4-6kgf/m²		Max thickness of slitting paper	1000g/m²
Quick connector	1/8		Max slitting film thickness	1.5mm

LZ-180(200)/80 Pneumatic Knife Holder

Max lower cutting range	32mm		Min slitting width	65mm
By the knife	3mm		Max applicable slitting speed	1800m/min
Work pressure	4-6kgf/m²		Max thickness of slitting paper	2000g/m²
Quick connector	1/8		Max slitting film thickness	3mm

circular knife The circular knife is widely used for slitting paper, plastic films, cloth, foam, rubber, copper foils, aluminum foils, graphite, etc. This kind of knife is ground by professional equipment. Its nice appearance, high precision, and durable life make it has high-cost performance. hoose high-quality raw materials Rough forming Vacuum heat treatment Cooling and tempering Testing hardness Finish grinding size Product testing Anti-rust spray Marking packaging. The paper cutter blade is one of the important parts of the paper cutter, which is widely used in the papermaking and printing industry. Paper cutter blades are used in papermaking, printing and other industries. The sharpness and service life of the blades greatly affect the working efficiency of the paper cutter.
Circular& long cutting knife

Circular round paper cutting blade knife
Material :	Tungsten,Carbide(YG12),SKD51,W6Mo5Cr4V2,D2,High Speed Steel, Alloy Steel
Thickness:	0.8-1.5mm
Inner diameter:	0.1-80mm
Out diameter :	10-1000mm
Our suggestion :	Choose better materials to use, such as (alloy steel) high hardness, good toughness, long service life, without frequent tool change, save tool change time to improve work efficiency.

Long paper cutting blade knife
Material :	HSS,crime, Tungsten carbide
Thickness:	as to order
Inner /outside Dia:	as to order
Hardness :	HRC58-89
Advantage:	High-precision surface,burr-free
Our suggestion :	Choose better materials to use, such as (alloy steel) high hardness, good toughness, and long service life

Refiner machine cutting knife blade
Material :	65Mn, 9CrSi, Cr12MoV, W6Mo5Cr4V2, W18Cr4V, SKD-11, SKH-9,high-speed steel, alloy steel, SKH51, H13, 6CrW2Si, P20, K30
refiner blade :	1. multi-blade cutter ring 2. single-blade cutter ring 3. smooth cutter ring
Application :	mainly used in paper-making machinery and the paper roll industry
Blade manufacturing process:	The shape of the blade is round, and the blade needs to go through the processes of cutting, forging, shaping, turning shape, heat treatment, grinding outer circle, inner hole, fine grinding, turning knife edge, storage, packaging, storage, etc.
