PMC-53A Class 0.5S Three-Phase Multifunction Panel Energy Meter with RS-485 BACnet

Product Description

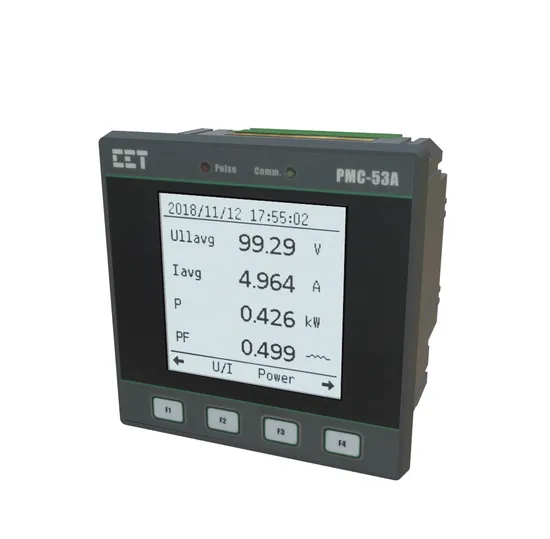

CET PMC-53A 3 Phase LCD Modbus RTU & BACnet MS/TP RS-485 Port MID UL Certified Intelligent Multifunction MeterThe PMC-53A Intelligent Multifunction Meter is CET's latest offer for the low-cost digital power/energy metering market. Housed in a standard DIN form factor measuring 96x96x88mm, it is perfectly suited for industrial, commercial and utility applications. The PMC-53A features quality construction, multifunction measurements and a large, backlit, Dot-Matrix LCD that is easy to navigate and user friendly. Compliance with the IEC62053-22 Class 0.5S, ANSI C12.20 Class 0.2 and EN50470-1/3 Class C Standards, it is a cost-effective replacement for analog instrumentation and is capable of displaying 4 measurements at once. It optionally provides I4 input for Neutral Current measurement, a second RS-485 port, up to six Digital Inputs for status monitoring, four Relay Outputs for control and alarm applications as well as other I/O options for different applications.

Typical Application

• Industrial, Commercial and Utility Substation Metering • Building, Factory and Process Automation• Sub-metering and Cost Allocation• Energy Management and Power Quality Monitoring

Feature Summary

Ordering Information

Dimensions

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
