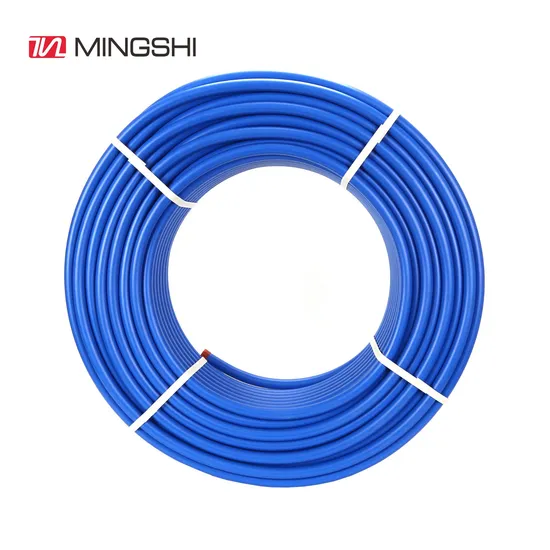

Mingshi Hot Water Pipe Overlapped-PE / Al / Pex with Aenor/Acs/Wras/Watermark
| US$0.30 | 20,000 Meters (MOQ) |
Basic Info.
Compound Material
Aluminium Plastic Compound Pipe
Material
PEX-Al-PEX
Installation and Connection
Clamping Type Installation
Technology of Plastic Composite Pipe
Internal and External Coating
Base Pipe of Plastic Composite Pipe
Lase Welding Aluminum
Plastic Composite Pipe Coating Form
Inner and Outside Coating
Plastic Composite Pipe Model
16-63mm
Aluminium Plastic Compound Pipe Material
Crosslinked Polyethylene Aluminum Composite Pipe
Size
12, 16, 18, 20, 25, 32, 40, 50, 63mm
Transport Package
CTN Boxes, Knitting Bags, Kraft Papers, Pallets
Specification
Aenor, Skz, Snas, Phz, SGS, Watermakr, Jaswic
Trademark
MSP/MINGSHI/OEM
Origin
China
HS Code
74122090
Production Capacity
7million Meters/ Month
Product Description
| Essential details | |||||
| Place of Origin: | Zhejiang,China | Material: | Pex | ||
| Specification: | 16-63MM | Length: | 25/50/100/200/300/500 or OEM | ||
| Thickness: | 2.0, 2.5, 3.0, 4.0, 4.5, 6.0 | Standard: | AENOR,SKZ,WRAS,WATERMARK | ||
| Processing Service: | Cutting | Product name: | Pex-Al-Pex pipe | ||
| Application: | Gas system,Water system, Under floor heating. | Type: | Plastic Building Material | ||
| Raw Material: | Pex, Aluminum | Colors: | White,Red,Blue,Orange,Red or OEM | ||
| Logo: | Support custom logo | Features: | Corrosion Resistant,fire resistant,high pressure | ||
| MOQ: | 10000m | Shape: | Round | ||
| Advantage: | Flexible,easy to install | ||||
| Supply Ability | |||||
| Supply Ability: | 3000000 Meters per month | ||||
| Packing&Delivery | |||||
| Packing Details: | With craft paper, then plastic film outside/Plastic bag | ||||
| Port: | Ningbo or Shanghai | ||||
| International Standards | ||
| 1 | EN ISO 21003 | Multilayer piping systems for hot and cold water installations inside buildings |
| 2 | AS 4176.2 & 3 | Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS |
| 3 | ISO17484-2:2009 | Multilayer Plastics piping systems for indoor gas installations |
| International Certificates | ||
| 1 | AENOR | refers to EN ISO 21003,UNE-EN ISO 53007 |
| 2 | QB | refers to EN ISO 21003 |
| 3 | ACS | refers to XP P41-250 |
| 4 | Watermark | refers to AS 4176.2 & 3 |
| 5 | WRAS | refers to Regulators' Specification |
| 6 | ISO 9001:2015 | Quality management system |
| Size&Tolerance | ||||||||||
| Nominal size(D x e) | 14×2.0 | 16×2.0 | 18×2.0 | 20×2.0 | 25×2.5 | 32×3.0 | 40x4.0 | 50x4.5 | 63x6.0 | |
| Outside diameter (mm) | 14 | 16 | 18 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Tolerance of Outer diameter (mm) | Min | 14 | 16 | 18 | 20 | 25 | 32 | 40 | 50 | 60.6 |
| Max | 14.3 | 16.3 | 18.3 | 20.3 | 25.3 | 32.3 | 40.4 | 50.5 | 63 | |
| Inside diameter(mm) | 10 | 12 | 14 | 16 | 20 | 26 | 32 | 41 | 51 | |
| Tolerance of Inner diameter (mm) | Min | 9.9 | 11.9 | 13.9 | 15.9 | 19.9 | 25.9 | 30.9 | 39.4 | 49.3 |
| Max | 10.2 | 12.2 | 14.2 | 16.2 | 20.2 | 26.2 | 31.9 | 40.8 | 50.8 | |
| Pipe thickness (mm) | 2 | 2 | 2 | 2 | 2.5 | 3 | 4 | 4.5 | 6 | |
| Tolerance of pipe thickness (mm) | Min | 2 | 2 | 2 | 2 | 2.4 | 2.9 | 4 | 4.5 | 6 |
| Max | 2.25 | 2.25 | 2.25 | 2.25 | 2.7 | 3.2 | 4.6 | 5.2 | 6.8 | |
