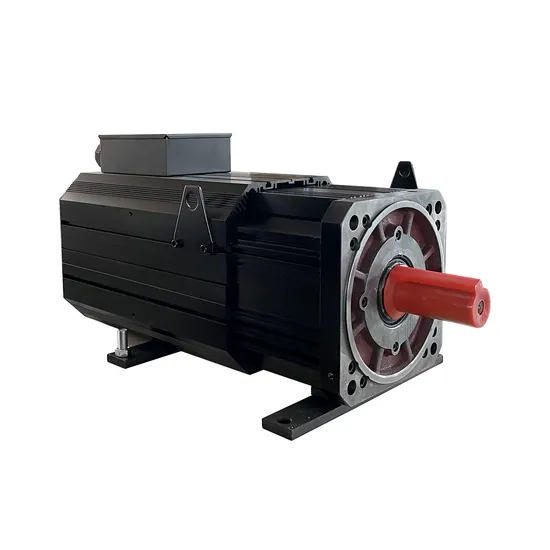

1700rpm Speed AC Servo Electric Motor for Auto Punching Machine

Product Description

Product Description
1. Small size, saving installation space
2. Strong overload capacity and high operating efficiency
3. Small speed fluctuation and smooth operation
4. Low temperature rise, low noise, high applicability
5. The energy saving is raised to level 1
6. The protection level is increased to IP67 Product Specification
Product Parameters

Model type	ZE251764D6363L3
Product Code(mm)	ZE25
Rated voltage (V)	380
Rated power (KW)	64.6
Rated torque (N.m)	363
Max torque (N.m)	605
Rated current (Arms)	126
Max current (Arms)	225
Rated speed (r/min)	1700
Max speed (r/min)	2500
Frequency(HZ)	113.3
Counter Electromotive Force(V)	310
Rotor Inertia(kg*cm2)	500
Line Resistance(Ω)	0.0562
Line Inductance Ld(mH)	1.32
Line Inductance Lq(mH)	2.65
