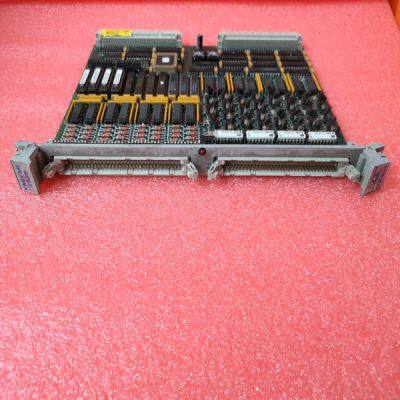

VMIVME-2536

Product Details

Product Description

Product Description
Brand:GE
Type:VMIVME-2536
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Provides two Ethernet ports, (two RJ45 connectors located on the TP853 Baseplate). • Simple DIN-rail mounting • Provides Redundant Ethernet networks for MasterBus 300. • Pre-set, two-letter Alpha code locking device installed in unit base prevents mounting of incompatible components. • Supports Hot swap. Description The CI855/TP853 can be used to connect an AC 800M to single or redundant MB 300 Networks. This allows DataSet communication and transmission of time between AC 400 Master and AC 800M. The TP853 Baseplate has two RJ45 Ethernet connectors for connecting to MB300. The baseplate has a code lock, see Table 4 on page 75, that prevents the installation of an incorrect type of unit onto the TP853 Baseplate. The CI855 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply, via the CEX-Bus. The Ethernet cable must be connected to the main network through an Ethernet Switch.
Unit error detected. Controlled by Control Software. Set and cleared by the Hardware during controller Reset. R(un) /Green Operating. Controlled by the Control Software. Cleared by the Hardware during controller Reset. Tx1 /Yellow flashing A yellow LED indicating transmission from the communication unit COM1 port. Rx1 /Yellow flashing A yellow LED flashes when data is being received from the COM1 port. Tx2 /Yellow flashing A yellow LED indicating transmission from the communication unit COM2 port. Rx2 /Yellow flashing A yellow LED flashes when data is being received from the COM2 port. Table 85. CI855 MasterBus 300 Interface Specifications Item Value Type Ethernet unit Protocol MasterBus 300 based on Ethernet Communication speed 10 Mbit/s (half duplex) Status indicators Run normally green, FAIL exceptionally red, the four traffic indicators RX/TX1, RX/TX 2, COLL1 and COLL2 are yellow flashing controlled by the traffic pace.
