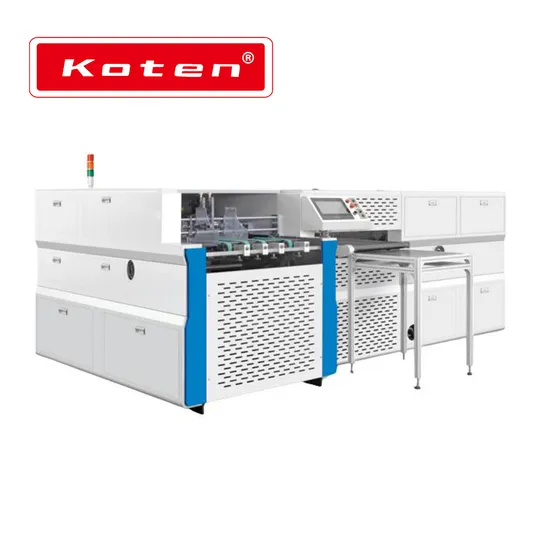

New Design High Speed 50-100 Meter/Min Board Slotting and Cardboard Grooving Machine
Basic Info.
Model NO.
HR-1000
Transport Package
by Strong Seaworthy Export Packing
Specification
4000*2300*1520mm
Trademark
koten
Origin
China
Production Capacity
150PCS/Min
Packaging & Delivery
Package Size
4150.00cm * 2450.00cm * 1680.00cm
Package Gross Weight
3850.000kg
Product Description
The slotting machine is a kind of mechanical equipment used for slotting ash plate. It has the characteristics of simple, practical and high efficiency. The structure of the product is mainly composed of waste removal conveyor belt, slotting knife, positioning device and control system. The slotting knife is installed in a fixed position for slotting, so that the slotting knife can be accurately slotted on the ash plate, and the control system controls the speed. The machine has the function of automatic waste cleaning, and the waste generated by the slotting will be automatically removed by the conveyor belt. The advantage of this product is that it can improve the accuracy and efficiency of gray plate slotting, avoid the error and labor intensity of manual slotting, and at the same time, the product is simple to operate and easy to maintain, which can save labor costs for enterprises.| Model | HR-1000 |
| Feed Size(L) | 130-600MM |
| Feed Size(W) | 130-650MM |
| Slot Angle | 80-140 |
| Number Of First Grooves | 4 |
| Number Of Second Grooves | 4 |
| Weight | 3500KG |
| Packed Weight | 3850KG |
| Precision | ±0.20MM |
| Highest Precision | ±0.10MM |
| Board Thickness | 1.0mm-4.0MM |
| Power | 6.0KW |
| Speed | 50-80 meter/min(300*300MM)130pieces/min |
| Highest Speed | 50-100 meter/min(300*300MM)150pieces/min |
| Machine Dimension | 4000*2300*1520MM |
| Packed Machine Dimension | 4150*2450*1680MM |
