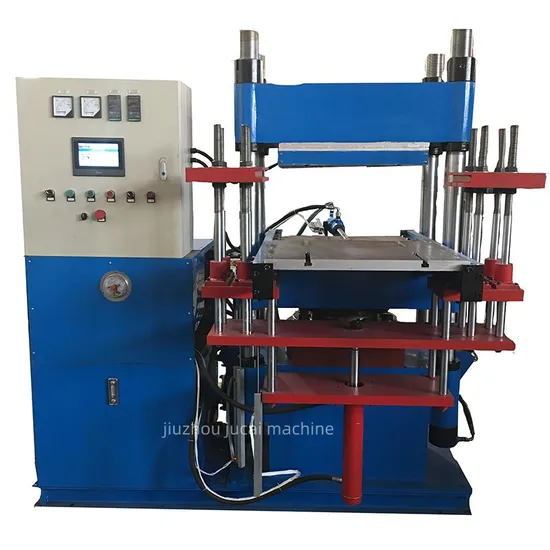

Rubber Vulcanizing Press for 50ton Molding with Automatic Control Heating

Product Description

Rubber Vulcanizing Press for 50ton Molding with Automatic Control Heating Product Description Discover the superior innovation of our Rubber Vulcanizing Press Machine, meticulously crafted with premier components such as the cylinder, heating plate, piston, electrical cabinet, and hydraulic station. This advanced machine is your ultimate ally for vulcanizing an extensive array of rubber and plastic products, delivering unmatched performance and reliability..
Main Features:
1. Experience the ease of our fully automated system designed for flawless operations. This machine takes productivity to new heights by autonomously managing the push and pull of molds, along with the efficient ejection of molds or products from cavities.
2. Our Electrical Control Cabinet is furnished with the distinguished SIMENS imported brand, providing unwavering reliability and exact control for precision-driven tasks.
3. Rely on the YUKEND Brand for hydraulic spare parts, renowned for their exceptional durability and performance, ensuring lasting service.
4. Mold in/out processes are expertly refined with nitrogen treatment and precision grinding, achieving outstanding parallelism of working benches for consistent, high-quality results.
5. The high-precision structural steel design simplifies the fitting of diverse molds, enabling adjustments, repairs, and maintenance with remarkable ease and accuracy.
6. Benefit from a slow-speed alignment adjustment feature, crafted for enhanced safety and precision in mold calibration.
Product Parameters

model/	XLB-D0.25MN	XLB-D0.5MN	XLB-D0.8MN	XLB-D1.0MN	XLB-D1.0MN
Mold closing force	0.25	0.5	0.8	1.0	1.0
Heating plate size	300*300 350*350	400*400 450*450 500*500	500*500 600*600	450*450	550*550
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	152	200	250	285	300
Unit area pressure of heating plate (kg/cm2)	27.7 20.4	31.2 24.6	32 22.2	49.3	33
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen
Gross weight	900	1200/1350/1450	1550/1750	2200	2300

model	XLB-D1.0MN	XLB-D1.2 MN	XLB-D1.6 MN	XLB-D2.0MN	XLB-D2.5MN
Mold closing force	1.0	1.2	1.6 MN	2.0	2.5
Heating plate size	600*600	700*700	750*750	800*800	1000*1000
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	300	320	360	400	450
Unit area pressure of heating plate (kg/cm2)	27.7	24.5	25	31.25	25
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen

FAQ 1. Are your company a trading one or a factory?We are a Factory + Trade (integration) entity with 30 years of dedicated experience in rubber machine design and production.We welcome OEM projects, tailoring our expertise to meet your specific needs.2. How to choose the most suitable products?Our expert team is ready to assist you in selecting the perfect machine. Simply inform us about the product type and required specifications, and we will provide the best recommendations.3. Do you accept customization service?Absolutely, we offer both standard and customized machines to meet your unique requirements. Share your specific needs with us, and we will strive to fulfill them.4. How about your warranty?Our standard warranty is one year. Within this period, we provide technical support and parts replacement. If needed, our engineers can visit your location for enhanced service.Our engineers may travel to your site to ensure optimal service.5. How about the packing for the machine; is it safely protected during transportation?Our machines are securely packed in standard export wooden boxes to prevent any damage. We have successfully shipped numerous testing machines overseas by sea and air without any incidents.6. What is the order process?The order process includes the following steps: Inquiry - Quotation - Communication - Order Confirmation - Deposit Payment - Production - Testing and Debugging - Balance Payment - Packing - Delivery - Customer Receiving - After Service.
