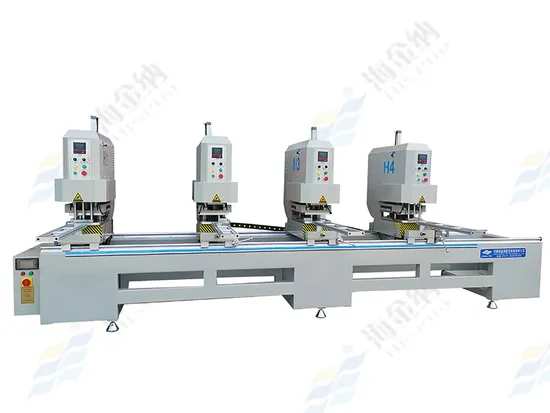

Four Heads Double Side Seamless Plastic PVC Welding Machine - a Must-Have for UPVC Window Producers
Basic Info.
Model NO.
SHWA4
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
220V
Applicable Industries
Manufacturing Plant, Construction Works
Marketing Type
Ordinary Product
Core Components
Pressure Vessel, Bearing, PLC
Weight
1500kg
Power
4.5kw
Applicable Material
PVC, UPVC, Plastic
Key Selling Points
Long Service Life
Machine Type
UPVC Window Welding Machine
Work Air Pressure
0.5-0.8MPa
Air Consumption
200L/Min
Welding Material Length
380-4500mm
Welding Material Height
20-120mm
Clean Type
Inner/Outer/Both Surface
Specification
5300*930*1700mm
Trademark
Hisena
Origin
China
Production Capacity
50sets/Month
Product Description
Product DescriptionMain Features 1 Used for high-end colorful(filmed type /transfer type/two-color extrusion type/spraying type)Upvc and common white Upvc type window door frame double surface cleaning welding.
2 Adjust the melt temperature/melt time/cooling time for different type profile.
3 Each head have two cleaning tools.To make the welding surface smooth,after welding,those tools automatic cleaning the welding surface.
4 Adopts PLC system,increase extra pinch device,to make welding stable.welding frame corner high strength.
Technical Parameters
| Power | 220V50Hz | Dimension | 5300mm x 930mm x 1700mm |
| Input power | 4.5KW | Weight | 1500kg |
| Working pressure | 0.5-0.8MPa | Melding time | 0-99s |
| Air consumption | 200L/min | Melting temperature | 0-399ºC |
| welding width | max120mm | Melt quantity | 6±1mm |
| welding height | 20-120mm | Clean type | Both surface |
| welding length | 380-4500mm | |
