Hebei Dapu Supplier of Fence-Mesh-Welding-Machine

Product Description

Product Description
Hebei jiake supplier of Fence-mesh-welding-machine
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, nail making machine, wire drawing machine, expanded metal mesh machine, expanded metal machine, gabion mesh machine, hexagonal wire mesh machine, crimped mesh machine etc.
Parameter of machine

Model	DP-FP-2500A	Wire diameter	2.5-6mm/3-5mm
Line wire space	50-300mm	Cross wire space	25/12.5mm-300mm
Width of mesh	Max.2.5m	Length of mesh	Max.6m
Welding electrodes	48pcs	Welding speed	50-75 times/min
Rated electrical power	125kva*6pcs	Needed power	Min.160kva
Weight	4.2T	Overall size	5.4m*3.2*1.7m

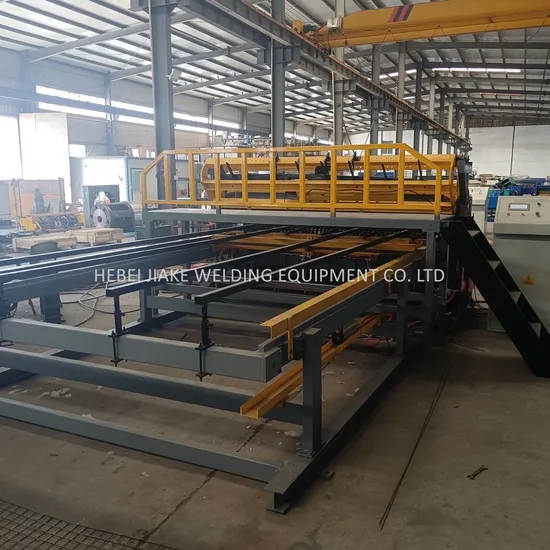

Details of machine Main technologies
1.The control panel is more intelligent, very easy to operate. (Panasonic PLC program)
2.The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.
3.The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.
4.Pure red copper (upper) and chromised bronze (lower), durable.
5.Clutch motor and helical gear reducer connect the principal axis directly, welding stable.
6.Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.
7.Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
8.The cable drag chain is Igus brand, imported from Germany, not easily hang down.
Wire feeding way
The longitude wires and cross wires should be pre-straightened and pre-cut.
1.The longitude wires are inserted into the slot tunnels manually.
2.The cross wire are put into the cross wire feeder, which is controlled by step motor&SMC (Japan) air cylinders,automatic falling.
Loading & delivery
