Advanced CNC 3D Drilling Machine for Steel Plate Processing

Product Description

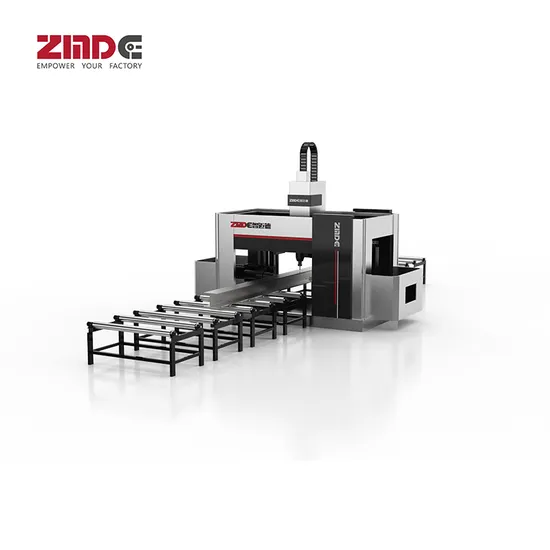

ZMDE Steel Plate Processing Equipment CNC 3D Drilling Machine for Steel Plate
Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

This state-of-the-art device is engineered to drill precise holes on three sides of H-beam steel simultaneously. Boasting 7 CNC axes and a CAD/CAM directly generated processing program, it handles a maximum H-beam section size of 1000×500mm and drills up to a diameter of 33.5mm. The advanced control system integrates a computer numerical control system, AC servo system, photoelectric encoder, and PLC. Simply input the workpiece size to automatically generate the machining program, which can be stored, recalled, displayed, and processed by part number at any time.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Founded in 2013, ZMDE Co., Ltd. is a pioneer in research, development, manufacturing, sales, and service of assembly building intelligent equipment. Recognized as a national specialization, speciality, and new 'small giants' enterprise, our core industries include steel structure assembly building intelligent industrial mother machines and industry IoT andintelligent control systems.
Our headquarters and main research hub, located in Lingang New Area, Pudong New District, Shanghai, spans 32,000 square meters and includes the Research Institute of Artificial Intelligence for Assembled Buildings. This facility focuses on management and the development of cutting-edge core technologies in Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, situated in Weicheng District, Weifang City, specializes in the research, development, and production of intelligent industrial mother machines for steel beams and walls of assembled buildings.
