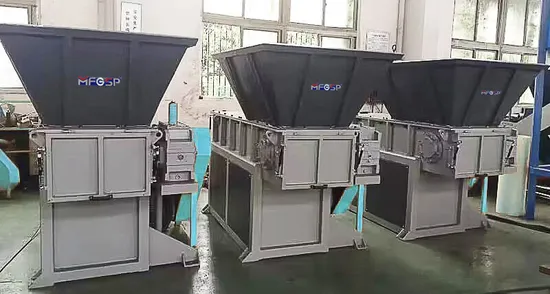

Single Shaft Low Speed Plastic Lumps Wood Paper Wastes Shredder

Product Description

Single shaft shredder

Performance characteristic:
Uniaxial shredder can deal with it calmly with excellent processing effect and productivity
Applicable materials include:large pieces,decoration waste,clothing and leather scrap,household waste screening(RDF), light materials in paper mills, single-shaft crusher applications,tree stumps,branches,building templates,synthetic boards,various plastics, films,winnable light,crop straw,industrial waste paper,carton board, OCC waste paper,etc.
THIS PRODUCT HAS A WICE RANGE OF APPLICATAONS,CAN MEET THE NEEDS ON MOST CUSTONERS ;SAFE AND RELIAILE Strong power copper-core motor is adopted, with fast speed and high energy conversion efficiency
Features:
·High-quality ;lifelong maintenance
·High output ≥ 500KG/H
·The product is evenly granulated without dust
·Low noise ≤ 50DB
·The intelligent PLC control system makes the reverse direction when the material is jammed
·Long life ≥ 10 years
Product quality advantage:
NO.1 Rotating Blade Shaft
The blade material is DC53, and the four corners can be replaced
NO.2 Electric Box
Sie mens programming control system is adopted to realize automatic control, with start, stop, reverse and overload automatic reverse control functions
NO.3 Push box
Through hydraulic control, the push box repeatedly pushes the material to the knife roll, significantly improving the output and even granulation of the product
NO.4 Screen
The size of the screen aperture determines the particle size of the product. Customers can choose the appropriate screen size and shape according to their needs
Parameters:

Model	SPD-400	SPD-600	SPD-800	SPD-1000	SPD-1200	SPD-1500
Chamber Calibre(mm)	405x500	605x500	805x950	1010x950	1210x950	1500x1000
Motor power(kw)	18.5	22	37	55	90	110
Cylinder stroke(mm)	450	550	1000	1000	1000	1000
Rotary cutter shaft diameter(mm)	230	230	320	320	350	380
Size of rotating blade(mm)	40x40	40x40	40x40	50x50	50x50	50x50
Rotating blade(Pcs)	21	30	56	56	68	84
Fixed blade(Pcs)	1	1	2	2	2	2
Hydraulic motor power	1.5	2.2	3	3	4	5.5
Hole size of mesh(mm)	30-80	30-80	30-80	30-80	30-80	30-80
Weight	1280	2100	3000	3500	3900	5800

Effect display:
