Rt50sm Automatic Double-End Ss Cooper Pipe Pneumatic Hydraulic Pipe Bar Chamfering Machine

Product Description

Characteristics:
1. Can finish internal angle, external angle and pipe end at one time.
2. Automatic clamping, automatic blades penetrating and returning, fast speed, big capacity, high efficiency, convenient operation, easy learning and understanding.
3. The speed of main shaft blade penetrating can be adjusted, fast speed and work speed functions are available.
4. In accordance with chamfering processing of work pieces of different size, only need to change the clamp fixtures and adjust the blade bed.
Specifications:

Technical parameters	RT-50SM
Pipe diameter capability	Φ8~Φ50mm
The length of chamfer working piece	40~600mm (the customized type can process the one less than 100mm and more than 600mm)
Rotation speed	800/1200
Main motor	3.5kw
Pneumatic pressure	0.6~0.8Mpa

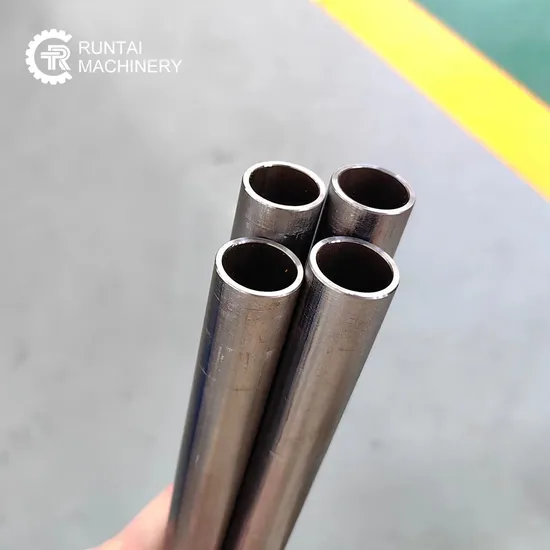

Suitable material	Carbon steel, stainless steel, aluminum, copper (pipe and iron bar)
Size	1800×1000×1100mm
Weight	About 600kg

Company Details
Professional: 15 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc
Trade information:
FOB Shanghai, CIF your port
Payment Terms: T/T
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
