Molded Press Wood Pallet Making Machine

Product Description

Hot Mould Press Sawdust Pallet Press machine

Product Description
1. The compressed wood pallet machine is used for pressing and forming wood chips, straws, waste chemical fiber, and other raw materials. There is an independent hydraulic system in this equipment.2. The compressed wood pallet-making machine has the advantages of good stability performance, high efficiency, and energy saving. What is more, the compressed wood pallet is fumigation free and has no limit for international transportation.3. The press machine can use both steam and thermal oil as a heating source.4. The pallet press machine is very convenient for installation and does not need basic positioning. You can produce different wood pallet sizes and pallet designs by changing the mold.

Machine Application
The raw material of the wood pallet process line includes wood waste, logs, sawdust, shavings and bamboo, cotton stalk and so on.

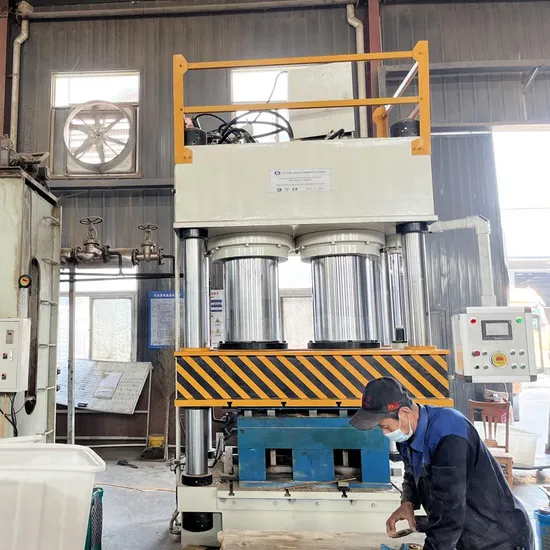

Detailed Photos
1. Our wood pallet machine has a good structure, it uses three-way synchronous positioning, precision, and balance, the pressurize will be soon when filling, and the pressurize will be fine within 35 seconds.
2. It is easy to operate, just press the work button, then the machines will complete the whole process automatically.
3. It needs about 450 seconds to mold a tray.
4. The machine can produce about 130-160 PCS pallets per day.
5. The density of the pallet is about 900kg per cubic meter.
6. The machine can be customized.
Product Parameters

Model	Wood Pallet Making Machine
Pressure	800Ton
Hydraulic oil cylinder diameter	320
Hydraulic oil cylinder quantity	4
Feeding way	Manual feeding
Lifting oil cylinder	Diameter 100*2
Heating temperature	150degree
Main motor	7.5kw
Pallet density	850kg/cubic meter
Capacity	120-150pce per day(16hours)
Time for enough pressure	35 seconds
Time for one piece	450seconds
Pallet size	Pallet size less than 1300*1250mm (can make 2-3 letter on mould)
Weight	120000kg
Dimension	2300*1300*4300mm
We can make mould according your design.

Product show of wood pallet press machine
1. Different molds can be customized according to customer requirements...
2. The raw materials can be produced by using wood chips, shavings, etc., or with wheat straw, cotton rods and other crop fibers.
The wooden pallet machine can be used with these two machines.
Production line of wood pallet press machine
step 1: crushing the materials into 2-5mm pieces.
step 2: if raw materials with high moisture, dry them to about12% moisture content.
step 3: mix the dried materials with glue according to a certain proportion.
step 4: fill the mixed materials into the mold and press.
step 5: keep pressing for 7-10 minutes, then you will get the finished pallet.
Related machine
Wood pallet feet leg block making machine is used for producing the feet of the wood pallet, the raw materials can share with molded compressed wood pallet.
Our factory

Zhengzhou Shuliy Machinery Co., Ltd was founded in 2000. Our company specializes mainly in produce, mold pallet machinery. We not only provide customers with cost-effective products but also provide first-class service support and solutions. Shuliy has passed SGS, ISO, and other certifications. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa, and Mongolia. A perfect after-sales service system allows you to worry-free.
Our customer
FAQ
Q1: Are you a manufacturer or trade company?
A1: We are a professional manufacturer for producing wood pallet machines and other waste recycling machinery for over 10 years.

Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standards, and we have a test on every machine before delivery.

Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than the market one. We will give you the best quotation.

Q4: What if the machine is damaged?
A5: One year warranty and all-round after-sales service. After this deadline, we shall charge at a low cost to keep after-sales service.
