OEM/ODM Manufacturer HVAC LED Light PCBA Controller PCB Assembly PCBA Factory

Product Description

OEM/ODM Manufacturer HVAC LED Light PCBA Controller PCB Assembly Factory

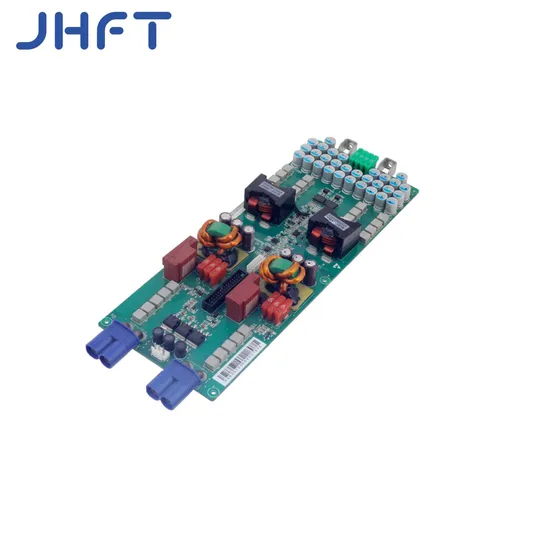

Detailed Photos
PCB capability

Layer count	1-40 layers
Material	fr4,Tg,cem-3,cem-1,etc.
Copper thickness	1/2oz,1oz,2oz,etc.
Board thickness	0.2-6.0mm
Min.line width/space	3/3 mil(75/75um)
Min. drill size	8 mil(0.2mm)
Min. HDI laser drill size	3 mil(0.067mm)
Tolerance of hole size	2 mil(0.05mm)
PTH copper thickness	1 mil(25 um)
Solder mask color	Green,blue,yellow,white,black,red,etc.
Peelable solder mask	yes
surface treating	HASL(ROHS), ENIG,OSP,gold finger,etc,
Gold thickness	2-30u" (0.05-0.76um)

PCBA capability

One-stop PCBA	PCB+components sourcing+assembly+test+package
SMT capability	1,000,000 points per day
DIP capability	200,000 points per day
Experiences	QFP, BGA, μBGA, CBGA
Process	Lead-free
Components details	BGA and VFBGA
	Leadless Chip Carriers/CSP
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	BGA Repair and Reball
	Part Removal and Replacement
PCB assembly process	Drilling---Exposure---Plating---Etaching & Stripping---Punching---Electrical Testing---SMT---Wave Soldering---AOI test---Assembling---ICT---Function Testing--Temperature & Humidity&Aging ect. Testing

FCB capability

Items	FPC board
Material	Flex
Layers	1-10L
Max cut lamination size	500*400mm
Final board thickness	(2L)0.07mm-0.2mm
Min Final Hole size	0.075mm
Aspect Ratio	-
Inner layer Line Width/Space	0.03mm
Copper Foil Thickness (Inner Layers)	1/6oz-1oz
Min dielectric layer thickness	20um
Copper Foil Thickness (Outer Layers)	1/3oz-1oz
Copper to drill distance	0.2mm
Out layer Line width/space	0.035mm
Min SMD width	0.05mm
Max Solder Mask Plug Hole Diameter	-
solder mask strip width	0.075mm(Green/1OZ)
Final Set Size Tolerance	±0.1mm/limit±0.05mm
Min Hole to board edge Distance	0.075-0.15mm
Min Beveling angle Tolerance	-
Layer to layer Tolerance	≤0.075mm(1-6L)
Inner layer Min PTH Annular Ring	0.15mm
Out layer Min PTH Annular ring	0.15mm
Surface Treatment	OSP,ENIG,Gold Finger,Plating Gold ,IMM TIN,IMM AG
Warp&Twist	Reinforced part according to customer request

Certifications

Packaging & Shipping
PCB Products
PCBA Products

Company Profile
Our Advantages
After Sales Service
FAQ Q: What type of services do you provide ?PCBasic: We provide turnkey solutions including PCB fabrication, components sourcing, SMT/DIP assembly, testing, mold injection, and other value-added services.Q: What is required for PCB & PCBA quotation?PCBasic:1. For PCB: QTY, Gerber filesand technical requirements(material, size, surface finish treatment, copper thickness, board thickness etc).2. For PCBA: PCB information, BOM list, Testing documents.Q: What is your minimum order quantity (MOQ)?PCBasic: No MOQ limited, sample and mass production both support.Q:Do you keep the provider product information and design files confidential?PCBasic: We are willing to sign a NDA effect by customers side local law and promising to keep customers data in high confidential level.Q: Do you accept process materials supplied by clients?PCBasic: Yes, we can provide component source, and also accept component from client.
