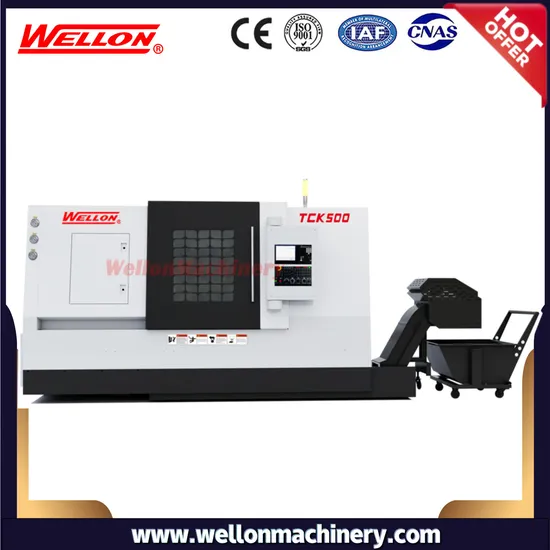

Slant Bed CNC Lathe Machine Center TCK500GP CNC Turning Center Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features: The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various
threads, circle arc, circular arc ,circular cone,inside and outside surface of revolved body. This machine is widely used in sanitary,valve ,electricall appliance,instrument,automobile,motorcycle, bearings and so on. Higher accuracy Taiwan Linear guideways. High speed spindle unit. Higher rigidity cast iron. Integrated automatic lubrication 45 degree One-piece casting slant bed.
Technical parameter:

Specifications	TCK500GP
Max.swing over bed (mm)	Φ500
Max.turning diameter (mm)	Φ500
Max.swing over cross slide (mm)	Φ230
Max.turning length (mm)	750
Spindle nose	A2-6
Chuck size	8"
Spindle motor power (kw)	11-15
Max.spindle speed (rpm)	4200
Spindle bore (mm)	Φ66
Max turning Dia Bar (mm)	Φ52
X/Z axis leadscrew (mm)	32/40
X axis limit Travel (mm)	270
Z axis limit Travel (mm)	610
X/Z axis motor torque (N/m)	11/11
X/Z axis linear guideway (mm)	45/45
X/Z axis accuracy (mm)	0.008
X/Z axis repeat accuracy (mm)	0.005
Tailstock quill diameter (mm)	Φ80
Tailstock quill travel (mm)	80
Tailstock travel (mm)	480
Tailstock taper	MT5
Machine dimension (mm)	2100x1386x1435
Weight (kg)	2700

Standard accessories:
8" Hollow hydraulic 3 jaw chuck from Taiwan Hydraulic tail stock Servo turret Ball leadscrew PMI Bearings for X,Z : FAG-P4 Drive servo motors from Fanuc Spindle motor CTB Fanuc 0i TF Control system Measuring arm MPG Chain type chip conveyor Cutting Cooling system Work lamp Central auto-lubricating system Tri-color warning lamp Heat exchanger in cabinet Full closed guard Tools and tool box Leveling bolts and blocks Optional accessories:
Spindle bearings from NSK Measuring arm Driven tools axial Driven tools radial Tailstock hydraulic moving (R axis) Tailstock with leadscrew and linear guideway (R axis) Turret with Y axis X,Z axis linear guideway Roller type
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you
