500ml Pet Mineral Water Bottle Blow Molding Machine

500ml Pet Mineral Water Bottle Blow Molding Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ZQ-M600-4
Making Method of Parison
Injection Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Engineers Available to Service Machinery Overseas
Number of Cavity
4 Cavities
Auto Systems
Fully-Auotmatic
Output
4000-4500 Bph
Max.Volume
600ml
Delivery Date
40 Days
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
General Packing
Specification
CE & ISO 9001
Trademark
ZQ
Origin
Huangyan, China
HS Code
8477300000
Production Capacity
30 PCS/Month

Product Description

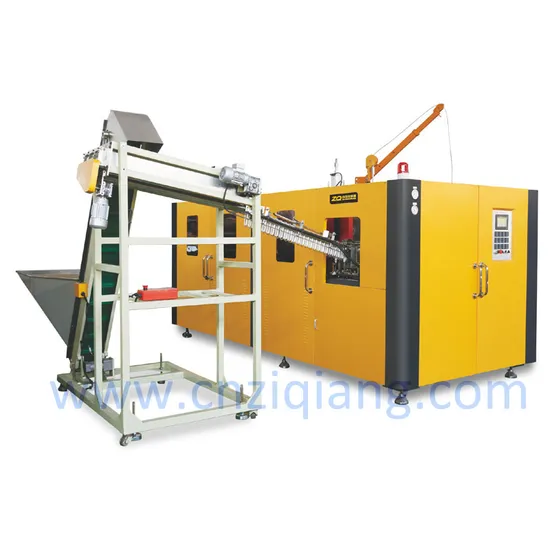

ZQ-M600 Series is 500ml PET mineral water bottle blow molding machine
By structure optimization and technicial innovation, Cost-effective ZQ-M series of blowing machines have been developed on the basis of ZQ-A series of blowing machines.
ZQ-M series of blowing machines can produce different shapes of 0.6L, 2.0L, 5L and 10L carbonated, mineral, pesticide, cosmetics, wide-mouth and other plastic PET/PP containers. They have all the advantages of ZQ-A series of blowing machines: Low rejection rate, high speed, stable running and easy operation.
ZQ-M600-4 Speed: >=4500bottles/hour.
500ml PET mineral water bottle blow molding machine,Settings.
A). PLC colour display: OMRON(Japan)
B). Pneumatic parts: FESTO(Germany)
C). Controller of preform transfer: Servo motor DELTA(Taiwan)
D). Other electric parts are all world-famous brand
500ml PET mineral water bottle blow molding machine,Equipment Information.
TYPE ITEM ZQ-M600-1 ZQ-M600-2 ZQ-M600-3 ZQ-M600-4
CONTAINER Number of cavity 1 2 3 4
Output 1200-1500 pcs/hr 2000-2300 pcs/hr 3000-3300 pcs/hr 4000-4500 pcs/hr
Max.container volume 0.6L 0.6L 0.6L 0.6L
Max.neck diameter 38mm 38mm 38mm 38mm
Max.container diameter 60mm 60mm 60mm 60mm
Max.container height 260mm 260mm 260mm 260mm
ELECTRICAL SYSTEM Number of lamp 14pcs 28pcs 32pcs 32pcs
Max.heating power 12kw 22kw 32kw 48kw
Installation power 14kw 25kw 35kw 52kw
Actual power consumption 9kw 14kw 20kw 32kw
AIR SYSTEM Operatating pressure 8kg/cm² 8kg/cm² 8kg/cm² 8kg/cm²
Low pressure consuming 800Ltr/min 1000 Ltr/min 1200 Ltr/min 1400 Ltr/min
Blowing pressure ≤30kg/cm² ≤30kg/cm² ≤30kg/cm² ≤30kg/cm²
High pressure consuming 1200-1600Ltr/min 1500-2000Ltr/min 2000-2500Ltr/min 2500-3000Ltr/min
CHILLER WATER Operating pressure 8-10 kg/cm² 8-10 kg/cm² 8-10 kg/cm² 8-10 kg/cm²
Temperatuer 10°C 10°C 10°C 10°C
Consuming 3600kcal/hr 5600kcal/hr 7600kcal/hr 8800kcal/hr
Flow rater 20Ltr/min 30Ltr/min 40Ltr/min 50Ltr/min
MACHINE Machine dimension 2.5×1.4×1.7(m) 2.9×1.55×1.8(m) 3.4×1.4×1.8(m) 3.95×1.65×1.85(m)
Machine weight 1.7T 1.8T 2.1T 2.5T

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
