Widely Used 5052 5083 Thick Aluminum Plates

Product Description

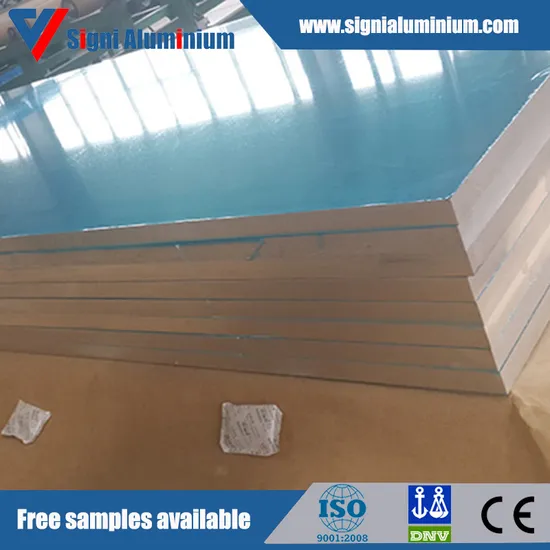

Widely used 5052 5083 thick Aluminum plates
Signi Aluminium is a specialized manufacturer in producing aluminium hard alloys and cladding materials, which is mainly applied in aerospace industry, railway industry, aut industry, ship building and ocean engineering, energy, moulding and tooling industry. Our product range mainly covers hot rolled plate, sheet, and stretched plate sheet, quenched plate sheet.
As one of China's leading producers of flat rolled products, Signi's aluminium plate is produced from its own cast slabs or continuous cast coils, rolled down to customised thickness, gauge and tolerances. Our hot rolled plates are durable and deliver long lasting performance.
Signi Aluminium Product Application
5*** 5052, 5A02: Metal sheet for marine and transportation vehicles, inner and outer siding, board of railway carriage, storage device of oil and chemical industry, equipment panel and medical machinery etc.
5083: Board, siding and deck of ship side and bottom, drilling platform, inner and outer siding, bed plate and board of railway carriage, welded parts of ship, automotive and aircraft panel, cooling device, tower body of oxygen generator, structural parts of pressure vessel, LNG, tanker oil storage tank and material storage tank of oil, and chemical industries, mould for automotive tire etc.

Hot rolled plate

As one of China' s leading producers of flat rolled products, Signi' s aluminium sheet is produced from its own cast slabs or continuous cast coils, rolled down to customised thickness, gauge and tolerances. Our hot rolled plates are durable and deliver long lasting performance. Application areas: Electrical busbars and ducting, ships, boates, tanks, defence and industrial uses, aircrafts.

Specifications
Alloys (AA)	Temper	Thickness range (mm)	Length range (mm)	Width range (mm)
1050, 1060, 1070, 1080, 1100, 1200, 3003, 3105 and 8011	F and O	6 _ 300	1000 _ 10000	500 _ 2700
5052, 5A02, 5A03, 5A05, 5251, 5182, , 5083, 5086, 6061, 6082, 6063, 7075, 2024	F and O H111, H112, T4, T6 (For 6061, 6063), T651(Stretched plates)	6 _ 300	1000 _ 10000	500 _ 2700

Chemical composition
Alloy (%)	5052	5083	5086	5754	6061	7075
Si	0.25	0.40	0.40	0.40	0.40_ 0.80	0.40
Fe	0.40	0.40	0.50	0.40	0.70	0.50
Cu	0.10	0.10	0.10	0.10	0.15_ 0.40	1.2_ 2.0
Mn	0.10	0.40_ 1.0	0.20_ 0.7	0.50	0.15	0.30
Mg	2.2_ 2.8	4.0_ 4.9	3.5_ 4.5	2.6_ 3.6	0.8_ 1.2	2.1_ 2.9
Cr	0.15_ 0.35	0.05_ 0.25	0.05_ 0.25	0.30	0.04_ 0.35	0.18_ 0.28
Ni	_	_	_	_	_	_
Zn	0.10	0.25	0.25	0.20	0.25	5.1_ 6.1
Ti	_	0.15	0.15	0.15	0.15	0.20
Each (Others)	0.05	0.05	0.05	0.05	0.05	0.05
Total (Others)	0.15	0.10	0.10	0.15	0.15	0.15
Al	Remaining	Remaining	Remaining	Remaining	Remaining	Remaining
Single number indicates maximum content.

Packing

Sheet: Sheets are placed in wooden boxes on wooden skids with runners along the length of the sheet. They are wrapped in HDPE with hardboard on top and bottom of the stack. Hoop iron strapping runs along the length of the sheets. Silica gel packets are put in the boxes for moisture protection.
