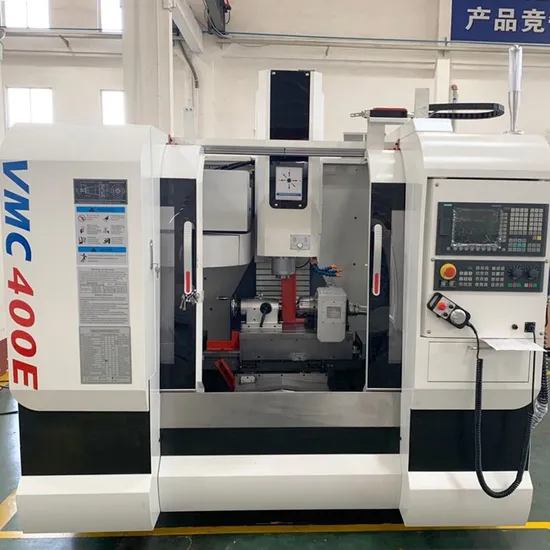

Hot Sale GSK Controller High Speed Chinese Vertical Milling Machine Center Vmc400e
Basic Info.
Model NO.
VMC400E
Type
CNC Milling Machining Center
Object
Hardware
Structure
Bed type
Milling Cutter Type
All
Milling Cutter Structure
All
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Guideway
Taiwan Linear Guideway
Worktable Size
650X300mm
X/Y/Z Axis Travel
400/350/400mm
Spindle
Bt40
OEM
Available
Delivery Time
2 Months
Color
Customized
Voltage
Customized
Servo Motor Power
5.5kw
Atc
16 Tools Atc
Spindle Speed
8000rpm
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
239.00cm * 225.00cm * 226.00cm
Package Gross Weight
2400.000kg
Product Description
Hot Sale GSK Controller High Speed Chinese Vertical Milling Machine Center VMC400E| Items | Unit | VMC400E |
| Table size | mm | 600*350 |
| T slot (No. x distance x width) | no | 3x120x14 |
| Max. load of worktable | kg | 100 |
| X/Y/Z-axis travel | mm | 400/350/400 |
| Spindle nose to table surface | mm | 60-460 |
| Spindle taper | - | BT40 |
| Speed Range | rpm | 40-8000 |
| Spindle motor power | kw | 5.5 servo |
| Cuttiing feed X/Y/Z | mm / min | 2-10000 |
| Rapid feed X/Y/Z | m / min | 30/30/24 |
| Tool magazine capacity | pcs | 16 |
| Tool magazine type | - | Umbrella type |
| Max. tool diameter (full) | mm | 8 |
| Max. tool length | mm | 80/130 |
| Max. tool weight | kg | 300 |
| Tool changing time (tip to tip) | s | 3/7 |
| Positioning accuracy | mm | ±0.005/300JIS |
| Repeat positioning accuracy | mm | ±0.003 JIS |
| Overall dimensions(LxWxH) | mm | 3020*1950*2380 |
| Packing size | mm | 2390*2250*2260 |
| N.W./G.W. | kg | 2400/2600 |
Standard accessories:
GSK CNC controller
Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm)
X,Y,Z Taiwan linear guide ways
16 Tools umbrella type tool magazine
Taiwan high precision ball screws
spindle blowing chip removal system
spindle front seal
Germany FAG bearings
Auto centralized lubrication system
two water cooling,
one air cooling,
electrical hand wheel (MPG),
working lamp
alarm light,
rigid tapping
air gun
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
