HDPE Corrugated Drainage Pipe Production Line

Product Description

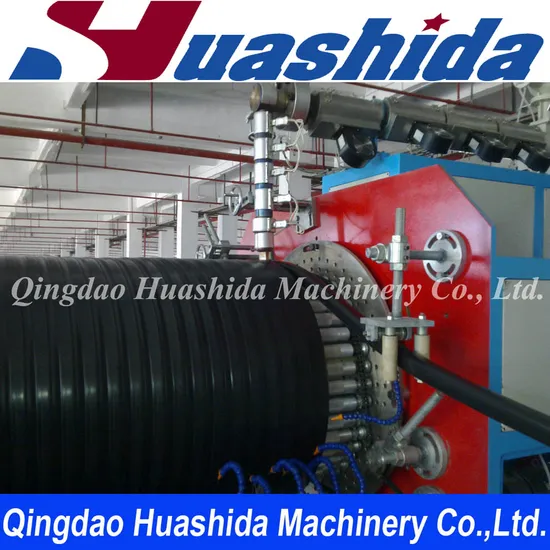

HDPE Corrugated Drainage Pipe production line

Product Description
HDPE Corrugated Drainage Pipe produced by this line have high ring stiffness,high brunt intensity and low weight due to its unique structure,In addtional,it has many advantages such as good creep deformation resistance,outer pressure resistance,erosion resistance (such as acid,alkali and salt erc.) long life of approximate 50 years.It has been widely used for sewerage and drainage in multicipal, it will replace the cement pipe,cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potential.
Features of HDPE Corrugated Drainage Pipe
HDPE Corrugated Drainage Pipe designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe ectrusion die, vacuum calibration water tank, spray cooling water tank, 2nd single screw extruder for melting glue material, spiral forming unit,cutting unit and stack unit.
INTRODUCTION
Pipe range: 200-800mm, 300-1200mm 1000-2000mm 2000-3000mm
Pipe application area:This kind of pipe is fit for municipal drainage of water less than 45ºC, building outdoor drainage, buried farmland drainage, industrial sewage, road drainage, sewage disposal work, sport field square drainage, electrical and telecommunication project etc.
TECHNICAL PARAMETERS

Model	Diameter(mm)	Style	Total Power	Extrusion speed	Capacity(kg/h)	Dimension(m)
SKRG 1200	300-1200	SJ-90×30 SJ-65×30	230kw	1-12	320-420	26×16×5.0
SKRG 2000	800-2000	SJ-100×33 SJ-65×33	400KW	0.5-5	600 240	32×16×6.0
SKRG 3000	2200-3000	SJ-120×30 SJ-90×30	520KW	0.3-3	600 300	42×18×7.0
