Pneumatic Ceramic Swing Feed Gate Valve

Product Details

Product Description

Product Description

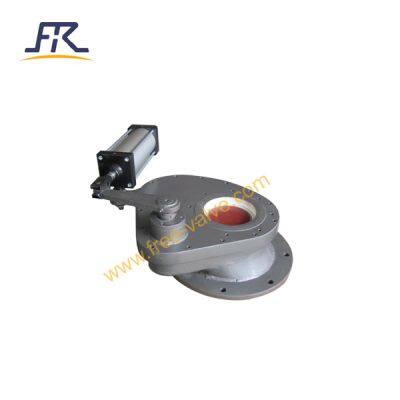

DN200 Pneumatic ceramic lined rotating disc gate valve
FREE-VALVE’s Pneumatic Ceramic Swing Feed Gate Valves are designed for circulating fluid bed system in the coal fired plant and installed beside the fly ash pump .They are suitable for the fly ash medium and the whole of ceramic sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve.They are used to instead the dome valve on site .
Features
1. The cylinder piston rod does not contact with the medium directly, which greatly prolongs the service life of the cylinder and has a higher service temperature without damaging the cylinder.
2. The sealing faces of the valve are made toughened engineering ceramics with good abrasion resistance and prolonged service life.
3. Product with customized structural length and connection size is available.
4. The valve disc rotational motion can avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.
5. The blow sweep port or automatic blow sweep device can be set on the valve body according to different operating conditions.
Technical Specification:
1) Size Range: NPS4~NPS12,DN100~DN300
2) Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange or threaded hole
5) Sealing material: engineering ceramics
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Valve body : GB/T12224,ASME B16.34
9)Operating Mode: Pneumatic
Application:
FREE-VALVE's Pneumatic Ceramic Swing Feed Gate Valve is suitable for CFB system in coal fired power plant. In these applications, pneumatic conveying method is used to reduce manpower demand, and improve system efficiency and reliability, and is easy to realize automation.
Model:FRZ643TC
Price:1000-5000USD/set
Origin:China
Payment terms:TT,LC
Price terms:FOB,CIF.FCA,CFR
Delivery time:30 days
