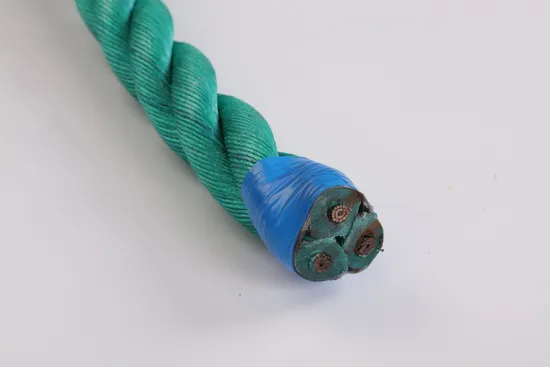

3 Strand PP Polypropylene Combination Rope

Product Description

Polypropylene(PP) combination Rope
This product is made of high quality polypropylene (PP) raw materials, through drawing, twisting line, making stock, and weaving together four processes.
The characteristics of rope light specific gravity, high strength, very efficient in the vessel operation, the highest utilization rate is the cable on the market the product, its tensile strength higher than that of polyethylene (PE) rope, has good wear resistance, ,chemical corrosion resistance, UV resistance.
Our company can produce super high - strength polypropylene rope, and the tensile strength is 20%~30% of ordinary polypropylene rope.
Application: ship mooring, towing, Marine fishing, Marine breeding, etc.
Details introduction
Density: 0.97 g/cm3 (floating in the water)
Melting point: 168 ° C
Elongation at break: 17 ~ 21%
Anti-UV: Good
Resistance to wear:Very Good
Chemical resistance:Very Good
8-strand Rope Parameter Table

mm Dia		Circ	Weight		Breaking Strength
mm	Inch	Inch	KGS/100M	LBS/100FT	Ton	kN
24	15/16	3	26.0	17.5	8.13	79
28	1-1/8	3-1/2	35.5	23.9	10.7	104
32	1-1/4	4	46.0	31.0	13.5	132
36	1-7/16	4-1/2	59.0	39.7	17.04	167
40	1-9/16	5	72.0	48.4	20.82	204
44	1-3/4	5-1/2	88.0	59.2	24.8	243
48	1-7/8	6	104.0	69.9	29.18	286
52	2-1/16	6-1/2	122.0	82.0	33.88	332
56	2-1/4	7	142.0	95.4	38.88	381
60	2-3/8	7-1/2	163.0	109.6	44.18	433
64	2-1/2	8	185.0	124.3	49.8	488
68	2-11/16	8-1/2	209.5	140.8	55.92	548
72	2-7/8	9	234.0	157.3	62.04	608
80	3-5/32	10	289.0	194.2	75.71	742
85	3-7/16	10-1/2	328.5	220.7	85.20	835
88	3-9/16	11	351.0	235.9	90.92	891
90	3-3/4	11-1/4	367.5	246.6	94.98	930
96	3-13/16	12	417.0	280.2	107.14	1050
100	3-15/16	12-1/2	453.5	304.7	115.82	1135
104	4-1/8	13	490.0	329.3	124.49	1220
112	4-7/16	14	570.0	383.1	141.84	1390
120	4-3/4	15	651.0	437.4	164.29	1610

12-strand Rope Parameter Table

mm Dia		Circ	Weight		Breaking Strength
mm	Inch	Inch	KGS/100M	LBS/100FT	Ton	kN
24	15/16	3	26.0	17.5	8.3	89
28	1-1/8	3-1/2	35.5	23.9	10.9	118
32	1-1/4	4	46.0	30.9	13.8	148
36	1-7/16	4-1/2	58.6	39.4	17.9	175
40	1-9/16	5	71.8	48.3	21.5	211
44	1-3/4	5-1/2	88.1	59.2	25.8	253
45	1-25/32	5-5/8	92.0	61.8	26.93	264
48	1-7/8	6	104.0	69.9	30.1	295
50	2	6-1/4	113.0	76.0	32.45	318
52	2-1/16	6-1/2	122.0	82.0	34.8	341
56	2-1/4	7	142.0	95.4	39.6	388
60	2-3/8	7-1/2	163.0	109.6	45.4	445
64	2-1/2	8	185.0	124.3	51.3	503
65	2-9/16	8-1/8	191.1	128.4	52.96	519
70	2-3/4	8-3/4	221.7	149.0	61.32	601
72	2-7/8	9	234.0	157.3	64.6	633
75	3	9-3/8	255.3	171.6	70.1	687
80	3-5/32	10	291.0	195.6	79.4	778
85	3-3/8	10-5/8	328.5	220.7	89.28	875
88	3-7/16	11	351.0	235.9	95.2	933
90	3-9/16	11-1/4	367.5	247.0	99.7	977
95	3-3/4	11-7/8	408.7	274.7	111.0	1088
96	3-13/16	12	416.0	279.6	113.3	1110
100	3-15/16	12-1/2	453.5	304.7	121.0	1185
104	4-1/8	13	486.0	326.6	128.6	1260
112	4-7/16	14	568.0	381.7	149.0	1460
120	4-3/4	15	651.0	437.5	170.4	1670
