Automatic Metal High Power Motor Import Turning CNC Turret Lathe

Product Description

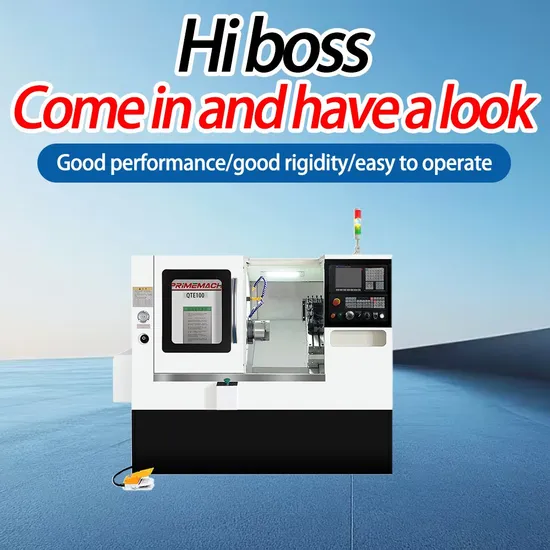

Numerical control cutting machine is an automatic machine tool with high precision and high efficiency. QTE100 CNC machine usually adopts integral sleeve spindle, driven by imported precision spindle bearing and spindle servo motor, which can achieve high precision, high rigidity and speed stability. It adopts a row knife type tool holder, and the structure is to hold a variety of different purpose tools, and the tool holder is arranged on a movable skateboard along the X-axis direction of the lathe. This layout makes the tool layout and lathe adjustment more convenient, according to the process requirements of the workpiece to be machined, can be freely combined with a variety of different uses of the tool.
Product characteristics
Detail
Convenient operation: Equipped with a digital control system, the operator does not need to carry out a large number of manual operations like the traditional lathe, and the lathe can be processed automatically through the operation interface button, reducing labor intensity and improving production safety
Flexible tool configuration: the row tool holder can easily combine a variety of tools according to the processing needs, to achieve turning, boring, cutting, threading and other operations, can adapt to different shapes and process requirements of parts processing.
The chuck is an important accessory of the lathe, which is used to grip the workpiece and rotate it with the spindle for machining. The chuck is a three-jaw chuck, and the three claws can move synchronously to the center or out, and automatically center and clamp the workpiece

CNC control system	GSK 980TC3
Maximum turning diameter	Φ 500 mm
Max machining diameter x length	Φ 380 x 300 mm
Spindle through hole diameter	Phi 56 mm
Maximum bar material machining diameter	Phi is 46 mm
Maximum spindle speed	4500rpm
Spindle end form	A2-5
Chuck size	6inch hollow chuck/collet
X axis maximum travel	710mm
X axis fast moving speed	20m/min
Maximum z-axis travel	350mm
Z-axis fast moving speed	20m/min
Number of row tool seats installed	5t
Outside diameter tool bar height	20*20mm
Inside diameter Maximum diameter of tool bar	25mm
Spindle motor	7.5 kw
Total machine power	15kw
Cooling tank capacity	140L
Machine height	1700mm
Floor area (length * width)	2050*1650mm
Gross machine weight	2300kg
SYNTEC/FANUC system	Truss manipulator
High pressure effluent 30Bar	Feeder, feeder
8inch hollow chuck	63 knife tower

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
Q: Do you have export experience?
A: Yes, we have been exporting machines to many countries worldwide for years and are familiar with export procedures, including customs declaration, clearance, and providing relevant certificates such as CO, invoices, and packing lists.
