Product Description

Working principle
When the self-cleaning brush screen filter recognizes too much dirt building up on the surface of the filter screen as well as a pressure difference between the inlet and outlet water reaching a preset value, it will automatically start its self-cleaning program. This entails the motor driving a rotating brush to remove the dirt buildup from the filter screen and switch on the electric valve for discharging the dirt. This effectively cleans the filter back into its optimal filtering state.
characteristicThe time allocated for cleaning can be adjusted to fit your needs, ranging from 20 to 120 seconds.No need to turn down the water during self-cleaning.The pressure loss caused by blowdown less than 0.5 bar.The flow deviation limited to less than 1%. Self-Cleaning Brush Screen Filter, STInstallation: vertical installationFlow rate (single filter): 15-1800 m³/h (larger flow can be obtained by connecting multiple units in parallel)Nominal pressure: 1.0 MPa, 1.6 MPaOperating pressure: 0.20-1.0 MPaMaximum operating temperature: 60 ºCFiltration degree: 200-3500 micronControl mode: differential pressure/timing/manualCleaning time: 35-120 sCleaning mechanism speed: 14-20 rpmCleaning method: electric brush cleaningCleaning pressure loss: 0.01-0.08 MPaOperating voltage: AC 380V, 50Hz, three-phase four-wireControl voltage: AC 220V, 50HzLCD display interface, user-friendly design, easy operation
Technical Specifications

Model	Inlet/outlet connection (mm)	Max. flow rate (m³/h)	Filtration area (cm²)	Drain valve DN (mm)	D (mm)	Water consumption per cycle (L)	Motor power (kW)	Weight (kg)
ST-100	DN100/10	80	3800	DN50/10	325	130	0.55	230
ST-125	DN125/10	100	4500	DN50/10	325	130	0.55	250
ST-150	DN150/10	150	4500	DN50/10	325	130	0.55	260
ST-200	DN200/10	300	5100	DN50/10	325	130	0.55	280
ST-250	DN250/10	400	9100	DN50/10	400	180	0.75	420
ST-300	DN300/10	500	10000	DN50/10	530	180	0.75	510
ST-350	DN350/10	800	14400	DN50/10	620	200	0.75	650
ST-400	DN400/10	1000	17000	DN80/10	720	250	0.75	760
ST-500	DN500/10	1800	30000	DN80/10	920	250	0.75	950

The flow accuracy in the table is 400 μm . If in need of PN25 pressure rating, we can customize upon request. For other technical parameters, please consult Xuyang for details.
Installation Dimensions

Model	ST-100	ST-125	ST-150	ST-200	ST-250	ST-300	ST-350	ST-400	ST-500
H	500	540	550	630	630	750	750	750	900
H1	990	1070	1090	1200	1200	1360	1390	1480	1525
H2	1120	1280	1300	1420	1450	1650	1750	1810	2120
L	650	700	650	700	850	950	1050	1300	1650
L1	283	283	283	283	345	415	475	515	650

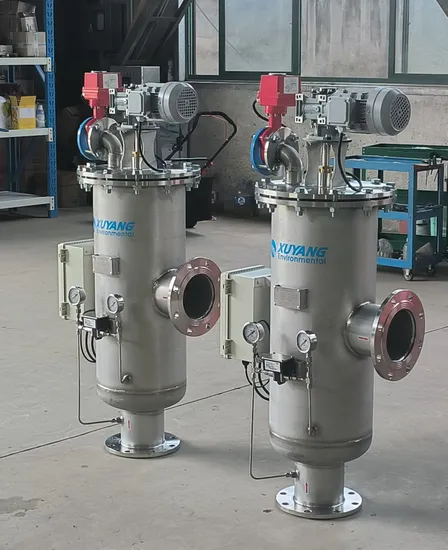

Self Cleaning Filter For Water Treatment
