PE 110-315 Advanced Technology Good Plastify Plastic Recycling

Product Description

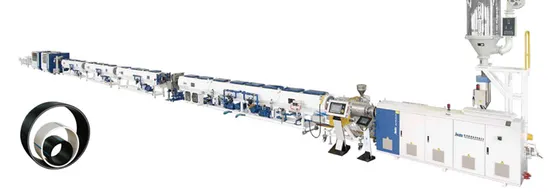

HDPE Water Supply Pipe, Gas Pipe Energy-saving and High Speed Extrusion Line
This production line adopts the most advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with common production line,the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.This production line has nice appearance,higher automatical degree ,production reliable and stable.
This picture is just for reference.
This extruder is used for PE110-315 pipe extrusion line. It consists of screw, barrel, gearbox and driving motor. The diameter of the screw is 75mm. It is made of 38CrMoAlA and adopts the treatment of Nitrided. The barrel is made of 38CrMoAlA. Like the screw, it is Nitrided treatment. The barrel has six heating control zones. The whole heating power of it is 30kw. Its cooling system is brower fan and the cooling power is 1.5kw. The matrial of the house is QT200. The type of the gear is Helical gears and the material is 20CrMnTi. It uses the Quenching of the gear surface. Bearings are Chinese famous bearings. Its lubricating system is press system. At the same time, its cooling system is separate. The method of the feeding block is water cycle. The material is Q235. Then it is an DC motor. The power of it is 132kw.
The 25/25 single screw extruder is for color strip. The diameter of its screw is 25mm. It is Nitrided treatment. The material of the barrel is 38CrMoAlA. It has two heating control zones. Each heating power is 1.2kw. The parts of this kind of gearbox is as the same as the gearbox in the extruder. But Lubricating system is Splashing system. Also its feeding block is like the feeding block in extruder. It has an AC motor with the power of 1.5KW.
This picture is just for reference.
The mould is spiral type. Its mouth die and core die are changeable. It possess 10 heating control zones. The heating power will up to max 36kw. The calibration unit is high-quality with resistance copper. The vacuum pump is 5.5kw and the water pump is 7.5kw. It is 5.8 meters long. And the stoke is 500mm.
This picture is just for reference.
The cooling tank is stainless steel. The method of the cooling tank is spraying. And each set water pump is 4kw. The length of it is also 6m.
This picture is just for reference.
This haul-off unit with pneumatic pressing is used for PE110-315 pipe extrusion line. The method of this haul-off unit having four caterpillars is rubber block caterpillar. The length of the caterpillar is1.8m. It uses AC motors with 0.75kw of each.

This picture is just for reference.
This cutter is used for PE110-315 pipe extrusion line. It is no dust cutting with pneumatic pressing. The moving method of the platform is also a pneumatic way. This cutter is suitable for the pipes with diameter ranged from 110-315mm. The motor of this cutter is 4kw.
Packaging & Shipping:
Wooden package for Jwell plastic profile sheet extrusion machine for PVC. Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.
