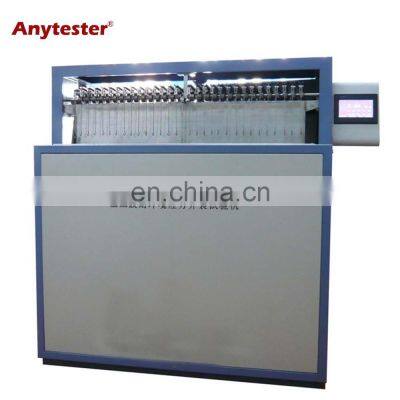

ASTM D5397 Polyolefin Geomembranes Environmental Stress Cracking Resistance Tester

Product Description

Product Description
Product DescriptionHY4151 ASTM D5397 Polyolefin Geomembranes Environmental Stress Cracking Resistance Tester is used to evaluate the stress crack resistance of notched plastic sheet under constant tensile load.StandardASTM D5397 Features1. 6 test units can work separately, easy to operate, accurate and reliable2. 6 test units, 5 working positions per test unit, can test 30 specimens at the same time, high efficiency 3. With automatic water supply function, double stirring motors to ensure small temperature fluctuation in the bath 4. Specimen supports designed with glass cover plate, can prevent water evaporation to control liquid concentration, also convenient to observe the test condition5. Automatic temperature control, concentration control and breaking time record6.Both Sample holder hook and water bath tank are made of corrosion-resistant stainless steel, never corrode. Specification ModelHY4151No. of test unit 6 or customizeWorking position 5pcs per test unitLoad range 200~1370gTiming range 1s~9999h59min59sTiming accuracy 1sTiming deviation±1minVolume of bath126LTemperature control range RT~70℃Display resolution0.1℃Temperature accuracy ±0.5℃Clamp axis diameter Φ6Operation temperature 10~35℃Heating power3.0kwPower supply Single phase, (187~242) VAC, 50Hz, 4.5kwDimensions 1900×450×1400mm (L×W×H)Weight 180kg
