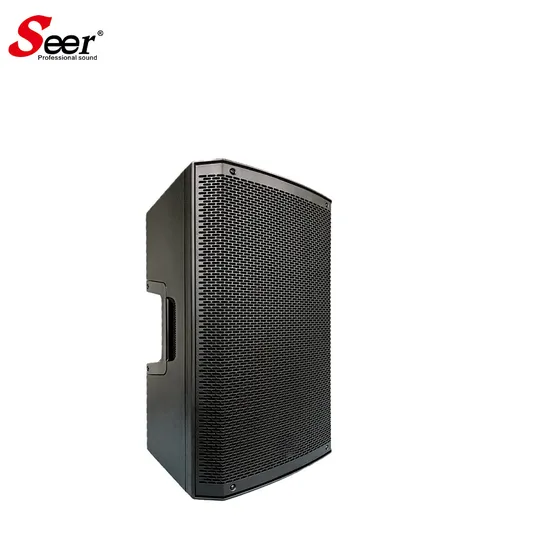

Active Full-Range Speaker Powered Speakers PA System Concert Sound System Loudspeaker

Product Description

Product Specification

Model Active	ZP-10A
System Type	2-WAY 10" Active Vented Loudspeaker System
Power System	Bi-AMP DSP Processor, 1000W continuous RMS (Class D LF-650W+ HF-350W), 4000W peak (2600W LF + 1400W HF)
Continuous Power	LOW: 650W / HIGH:350W
Program Power	LOW: 1300W / HIGH:700W
Transducer Low	10" (246mm), cone
Transducer High	1" Throat Compression Driver
Crossover Frequency	3.0kHz
Maximum SPL	129dB (peak), 126dB (continuous) (dB-SPL @ 1 m)
Frequency Response	54Hz - 20kHz (-3 dB)
Frequency Range	48Hz - 20kHz (-10 dB)
Horn Coverage	90° horizontal x 60° vertical (nominal)
DSP Preset Modes	LIVE-MUSIC-SPEECH-MONITOR
Connectors	2 x XLR+1/4" (6.35mm) TRS combo inputs (Line/Mic ), 1 x 3.5 Stereo AUX IN, 1 x Stereo BT (app control), 1 x XLR mix output (Link), 1 x IEC power cable input
Bluetooth Stereo	Stereo L/R-VOL-Pair-Link Switch (app control)
Controls	Volume Control knob, AC Power switch, Line / Mic toggle switch, DSP Preset Switch, BT Pair and Link Switch
Indicators	Signal / Clip Limiter LED, Four DSP Mode LEDs, BT Pair-Link LED, Power Switch LED
Power	Connection: IEC, Voltage: 110-120V~, 220-240V~, 50/60Hz, switchable, Fuse: 100-120V T10AL AC250V, or 220-240V T5AL AC250V, Consumption: 800W
Electronic Protections	Electronic clip, thermal and transducer overdrive protection
Enclosure	Trapezoidal, injection-molded, polypropylene with perforated steel grille, 2 x Handles (left and right sides)
Mounting / Installation	36mm standard pole-mount, suspended with integral M10 points, wedge monitor
Dimensions (HxWxD)	528mm x 332mm x 315mm (20.8" x 13.1" x 12.4")
Weight	27.1 lbs / 12.3 kg

Company Profile
Company Information
Guangzhou Seer Audio CO.,LTD is a professional sound system manufacturing company. Our factory specialize in manufacture speaker cabinet, loudspeaker, Tweeter component, amplifier, processor and stage equipment. Our sound system company was established in 1997, and the manufacturing company was established in 2004.We focus on the quality and stability of our products and aim to provide high quality products to our customers. Seer Audio use the most advanced engineering to make sure every product meets the requirements of the most professional and demanding applications. We are always working on expanding the scope of business all over the world. Our products won great deal of honour, such as ISO 9001:2000 quality system authentication, all of our goods pass ROSH test and got CE certificate. We have full confidence in our factory and our future.
Exhibitions
Project
Certifications
FAQ
FAQ
Q1.Can we have our logo or company information on your profucts or packages?
A1.Sure. We accept OEM/ODM orders. Just let us know your requirements.
Q2.Are you a pro-audio manufacturer or trade company?
A2.We are a 100% manufaturer located in Guangzhou.We specialize in R&D, manufaturing, sales.
Q3.How long can we expect delivery?
A3.The high season takes a month and the low season takes 15 days.
Q4.What is the What is the minimum order quantity? How to pay?
A4.The minimum order quantity is one, we only accept T/T.
Q5.How old is the company?
A5.Our company was established in 1997 and has a history of 27 years.
