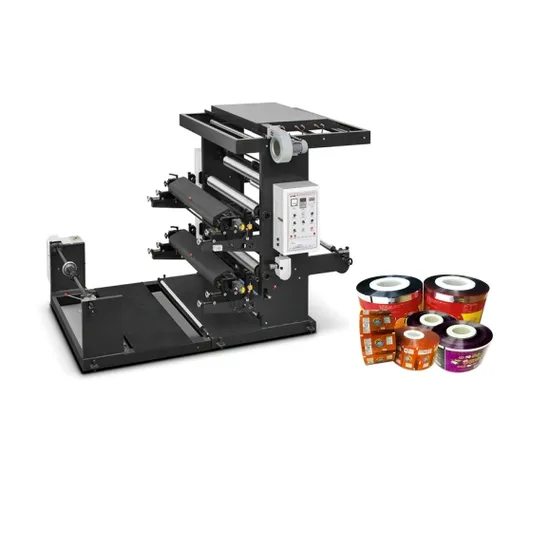

2 Color Plastic Film Flexographic Printing Machine
Basic Info.
Model NO.
YT2800
Printing Page
Double Faced
Printing Color
Multiple
Anilox Roller
Ceramic Anilox Roller
Dryer
Electric Heating
Type
Flexographic Printer
Embossing Structure
Platen Press
Structure
Stacked
Application
Flexible Packaging Printing
Automatic Grade
Automatic
Printing Speed
60m/min
Width
1000mm
Frame
Iron
Color
White
Max Unwinding Diameter
600mm
Max Rewinding Diameter
600mm
Printing Width
560mm
Printing Length
300-900mm
Thickness of Printing Plate
1.14mm or 2.28mm or Customized
Total Power
20kw
Weight
1300kg
Dimension
2300*1600*1800mm
Transport Package
Film Packing
Specification
SGS, CE
Trademark
Deguang
Origin
China
HS Code
84431400
Production Capacity
30 Sets/Month
Product Description
2 Color Plastic Film Flexographic Printing MachineApplication:
This machine can print bopp, pet, pvc, cpp, nylon, non woven, woven sack, paper,
aluminum foil ect.
Feature:
1. Single unwind and rewind, mechanical shaft 2. The printing ink is spread by anilox roller 3. IR heating, independent constant temperature control. 4. Cold air box which can effectively prevent ink adhesion after printing. 5. 360° adjustable longitudinal register device, reverse printing device is installed. 6. Main motor inverter control 7. When printing plate fall, ink motor stop,when it lift, ink motor starts automatically. 8. Meter counter can set printing length according to the requirements,machine
automatically stops when reaching to the set value or the material is cut off.
Specification:
| Model | YT2800 |
| Max width of printing material | 800mm(Width can be customized) |
| Max printing width | 760mm |
| Printing length | 300-900mm |
| Printing colors | 2 |
| Max diameter of unwind and rewind | 800mm |
| Max speed | 50m/min |
| Thickness of plate (Including Two-sided Glue Paper) | 1.14mm or 2.28mm or customized |
| Total power | 20KW |
| Weight | 1300kg |
| Dimension | 2300*1600*1800mm |
Printing sample:
Machine details:
Certification:
Our company:
Workshop:
CNC facility:
Packing and shipping:
Exhibition:
