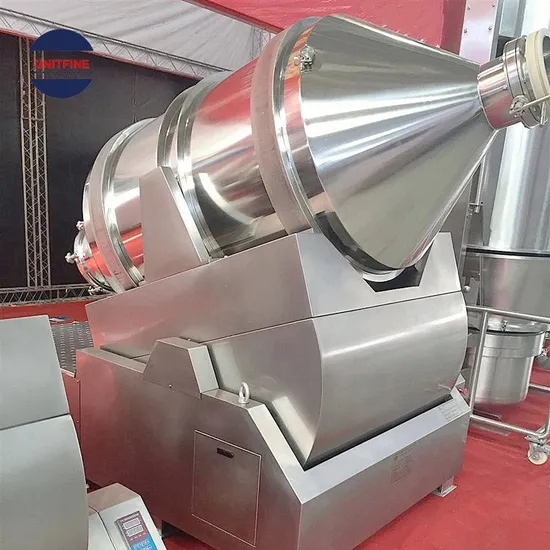

500 -3000L Two Dimensional Motion Blender Eyh

Product Description

Introduction
A Two-Dimensional Motion Mixer, also called a two-dimensional mixer refers to the type of industrial blender that can move simultaneously in two directions. The two directions are the drum swing with the swing frame and the drum rotation. Many use this to mix materials in bulk.
Many industries make use of two-dimensional mixers to simultaneously blend all powdered and granular materials together in a highly efficient manner. Some of these industries include pharmaceuticals, food productions, chemical, grain processing, mineral separation, dye, and pesticide industries. The materials are flipped, mixed, and rotated within the rotary barrel. During this time, these start moving from right to left along with the drum swing. Thanks to the two mixing directions, the materials you fed the mixer are evenly and thoroughly mixed in just a short period of time.
Main Parts of the UYH Series Two Dimensional Motion Mixer
The UYH Series Two Dimensional Mixer consists of four main parts. These are the drum (also called the rotary barrel), machine frame or base, the swing frame, and the controlling system.
How Does a UYH Series Two Dimensional Mixer Work?
One can find the drum installed on the swing frame supported by four support wheels. Two catch wheels act as the axial location while two driving wheels are within the four support wheels. The dynamic rotational system drags the two driving wheels to make the drum move and start rotating.
A group of mechanisms called a crank-rocker mechanism drives the swinging frame. Meanwhile, the bearing assembly supports the swinging frame for a safe and efficient mixing solution.
Advantages
The UYH Series Two Dimensional Mixer has a simple barrel structure that is easy to operate and effortless to clean. One can easily feed the machine, initiate the uniform horizontal and vertical mixing and discharge it fast after every use. One can guarantee that no dirt, pollution, and cross-contamination will occur thanks to the airtight rotary barrel. If you're looking for a highly-efficient mixing solution for high volume powdered or granular materials, then what you need is a UYH Series Two Dimensional Mixer.
How To Choose The Right UYH Series Two Dimensional Motion Mixer?
There are nine types and specifications of Two Dimensional Motion Mixers available at Unit Fine. By choosing the right kind of mixer, you can achieve maximum mixing performance. When selecting a blender, make sure to consider the following.
The desired volume and feeding weight of materials you need to mix per batch The density of the materials in pounds per square inch The power requirements when it comes to rotate and swing Key Features of the UYH Two Dimensional Mixer Low-cost and highly-efficient way of mixing powdered and granular materials The combined effect of two mixing movements (horizontal and vertical mixing motions) Mirror-polished surface made with durable and high-quality stainless steel Easy to operate and effortless to clean Low maintenance costs No dead corner CE marking and GMP (Good Manufacturing Practice) compliant Nine types available with varying volume and feeding weight capacity, power and dimensions Free from cross-contamination guaranteed
Models Available>>>

Type specifications	Volume(L)	Feedingcoefficient		Overall dimensions(mm)						Power(kW)
			Feeding weight
			(kg)	A	B	C	D	M	H	Rotate	Swing
EYH100	100	0.5	40	860	900	200	400	1000	1500	1.1	0.75
EYH300	300	0.5	75	1000	1100	200	580	1400	1650	1.1	0.75
EYH600	600	0.5	150	1300	1250	240	720	1800	1850	1.5	1.1
EYH800	800	0.5	200	1400	1350	240	810	1970	2100	1.5	1.1
EYH1000	1000	0.5	350	1500	1390	240	850	2040	2180	2.2	1.5
EYH1500	1500	0.5	550	1800	1550	240	980	2340	2280	3	1.5
EYH2000	2000	0.5	750	2000	1670	240	1100	2540	2440	3	2.2
EYH2500	2500	0.5	950	2200	1850	240	1160	2760	2600	4	2.2
EYH3000	3000	0.5	1100	2400	1910	280	1220	2960	2640	5	4
