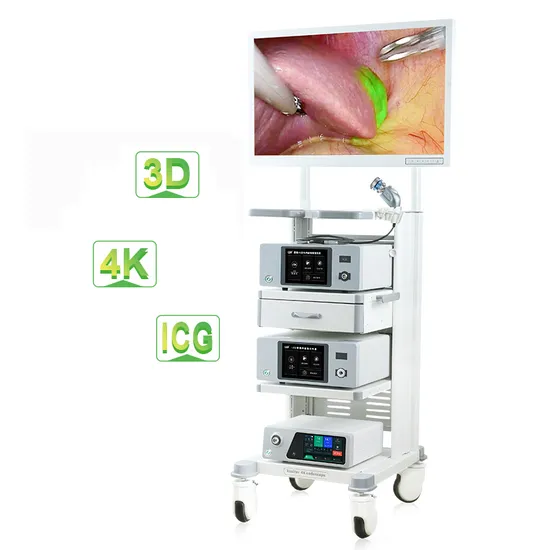

4K Fluorescent Medical Endoscope Camera System for Hysteroscopy Surgery

Product Description

Our Advantages1. Superior image quality:
The 4K imaging system offers four times the resolution of 1080p and nine times the resolution of HD imaging systems. This high resolution provides exceptional image clarity and detail, allowing surgeons to see fine structures and subtle changes during the surgical procedure.
2. Enhanced color reproduction:
4K fluorescence laparoscopy systems utilize advanced image processing technology and optical design to reproduce accurate and vivid colors within the surgical field. This enables surgeons to observe patterns, structures, and abnormalities in high precision, facilitating better identification and treatment.
3. Fluorescence imaging:
The addition of fluorescence technology in 4K laparoscopy allows the use of contrast agents, such as indocyanine green (ICG), which can highlight specific tissues orstructures. When ICG is administered and visualized under near-infrared light, it emitsa fluorescent signal, enabling surgeons to clearly identify lymphatic vessels, lymph nodes, blood vessels, and tumors. This can help in identifying sentinel lymph nodes,assessing tissue perfusion, and determining the boundaries of tumors.
4. Real-time visualization:
4K fluorescence laparoscopy provides real-time imaging and visualization, allowing surgeons to observe the surgical field in high definition during the procedure. This can aid in making more accurate decisions and performing precise surgical interventions.
5. Wide range of applications:
4K fluorescence laparoscopy has applications in various surgical procedures, including gastrointestinal surgery, urology surgery, gynecology, and hepatobiliary surgeries. It can assist in surgeries involving the liver, pancreas, bile ducts, blood vessels, and lymphatic system, improving accuracy and surgical outcomes.
Product Parameters

Camera	9,000,000 pixels1/3 "CMOS image sensor
Resolution	3840(H)*2160(V)
Definition	2100Lines
Minimal illumination	0.5Lux
Video output	HDMI2.0/3G-SDI (4K ultra high definition output) DVI, USB3.0
Shutter speed	1/60~1/60000(NTSC),1/50~50000(PAL)
Handle cable	2.8m/Special lengths need to be customized
Power supply	AC220/110V+-10%
SNR	More than 50db
Language	Chinese, English, Russian, Japanese and Spanish can be switched
Scanning system	Line by line scanning
Application	Thoracic surgery, urology, hepatobiliary surgery, Gastrointestinal surgery, gynecology

4K fluorescent camera
1. Connect to the 4K camera system host to achieve resolution ≥3840×2160 pixels (aspect ratio 16:9)
2. Achieve excellent photosensitive performance and signal-to-noise ratio through 4K ultra-high-definition 4CMOS image sensor;
3.4K dedicated optical lens connection to meet the needs of different surgeries;
4. It has electronic magnification function and can adjust the image size in real time through the buttons on the camera;
5. The function of the camera button can be customized according to the surgeon's requirements, which is convenient for intraoperative use and can be used in various surgeries.
Multiple imaging modes:
4K fluorescence laparoscopy systems offer multiple imaging modes, including high-definition white light imaging, black and white fluorescence imaging, and green fluorescence imaging. These different modes give surgeons valuable information about tissue perfusion, lymphatic drainage, and abnormal tissue structures, enabling them to perform safer and more precise surgeries.
Medical Monitor Paramenters

Camera	3210/5510
Screen size	32 "/55"
Input interface	VGA, SDI, S-VIDEO, YPbPr, RGB, DVI, VIDEO, YC
Resolution	4096*2160
Ratio	16:9
Display color	1.07B

The international Telecommunication Union (ITU) released the "Ultra High DefinitionUHD" standard, a physical resolution of 3840x2160 (4Kx2K) and above is called UltraHiah Definition, which is twice the width and height and four times the area of ordinaryFuHD (1920x1080)4K resolution is four times that of 1080p,3840x2160=1920x2x1080x2
The BT.2020 colour standard is the largest colour space available in a display deviceClinical applications allow better discrimination of tissue boundaries, such as fat,nerve and vascular junctions
Can more clearly observe the small blood vessels and pathological tissue contour.
