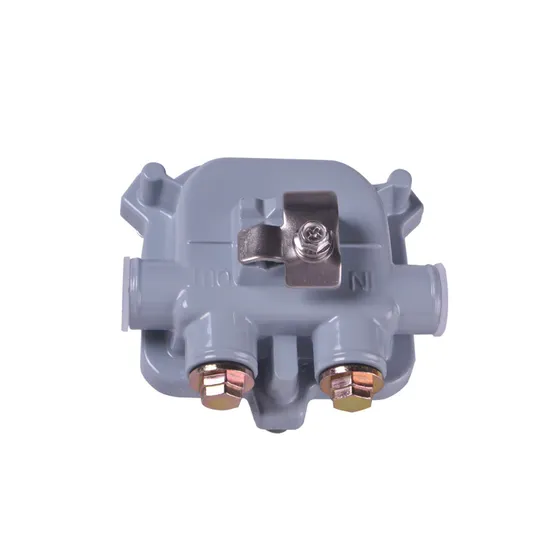

CATV Outdoor 5-1000MHz Trunk 3 Way Splitter

Product Description

CATV Outdoor 5-1000MHz Trunk 3 Way Splitter
This device is a splitter/divider which divides signal from a feed cable into three and more output signals. Having three important characteristics (insertion loss, isolation and return loss) determine whether this device is good or Bad.
1. CATV trunk 3 way splitter 5~1000MHz, RFI>110dB, all ports power pass 10A, UNEF 5/8 port, without connectors
2. Low insertion loss,
3. High return loss and isolation
Specifications
1.3 way splitter is used in trunk line with power passing up to 10 amperes
2. CATV 3 way splitter with 3 way inputs
Description
SFTFP308 outdoor splitter is used in trunk line with power passing up to 10 amperes. Waterproof house and flexible port design ensure high reliability.
Feature
1 Low insertion loss.
2 High return loss and isolation.
3 Aluminum housing that is plated for corrosion resistance.

OUTDOOR 3 WAY SPLITTER SFTFZ306
Item	Frequency Range	Specification	Unit
Insertion Loss	5-65MHz	< =7.5	dB
	65-550MHz	< =6.8
	550-750MHz	< =7.2
	750-1000MHz	< =7.9
Isolation	5-65MHz	> =20
	65-550MHz	> =22
	550-750MHz	> =22
	750-1000MHz	> =22
Return Loss	5-65MHz	> =14
	65-550MHz	> =16
	550-750MHz	> =16
	750-1000MHz	> =14
Impedance	50-1000MHz	75
Shield Decay	50-1000MHz	> =100	dB

FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and ****** Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed for the product price and specifications.
(2) Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
